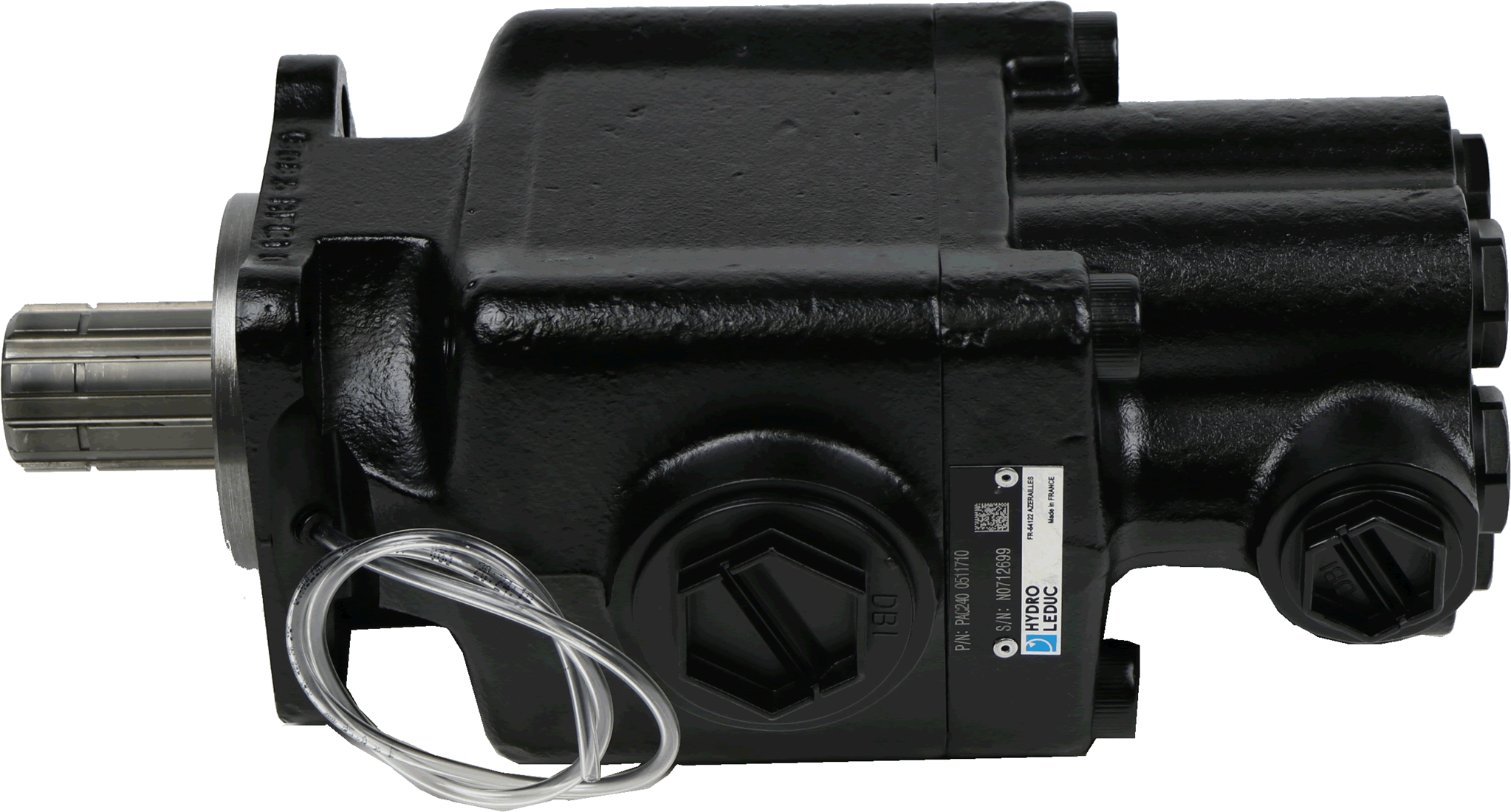

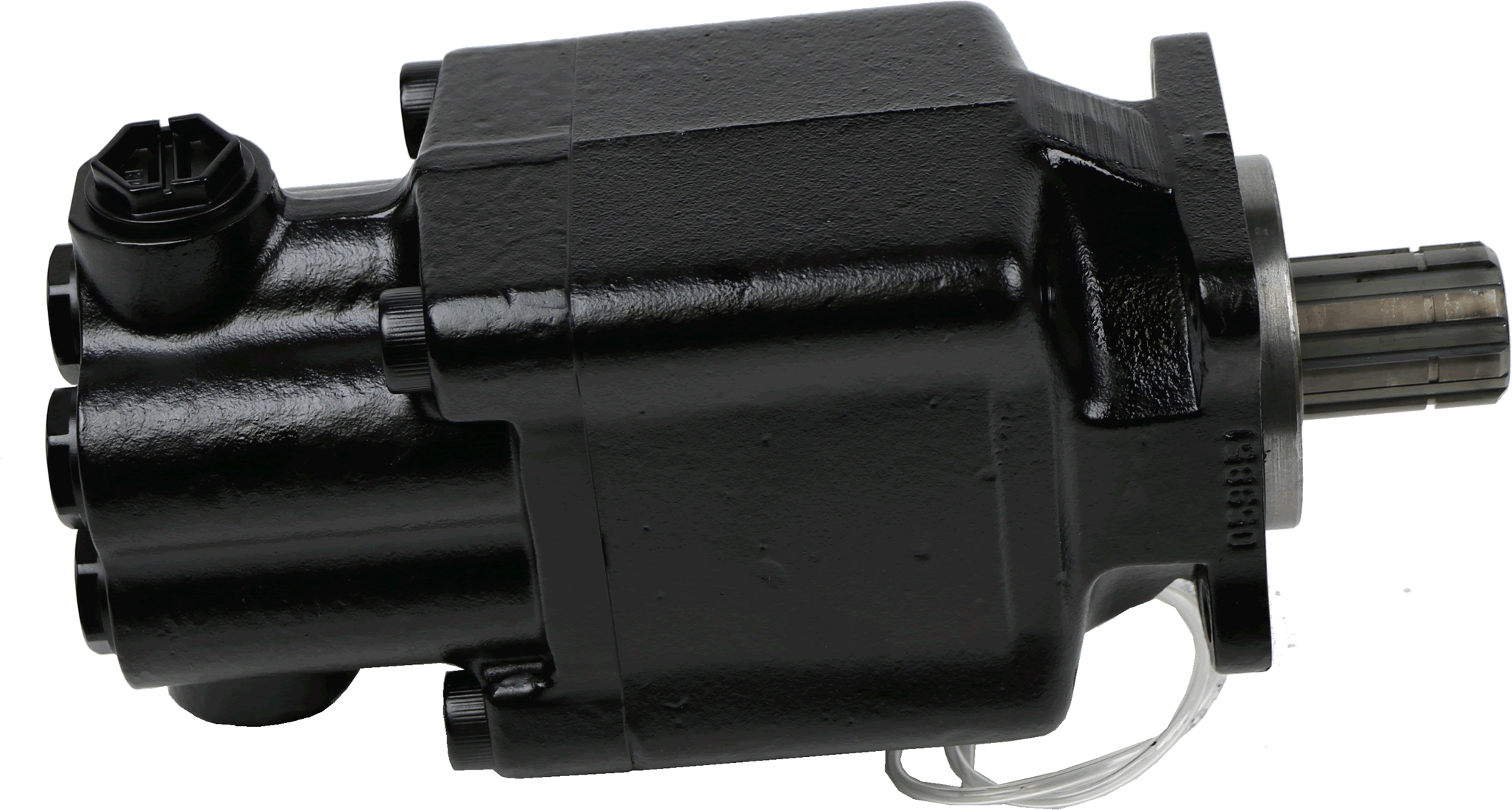

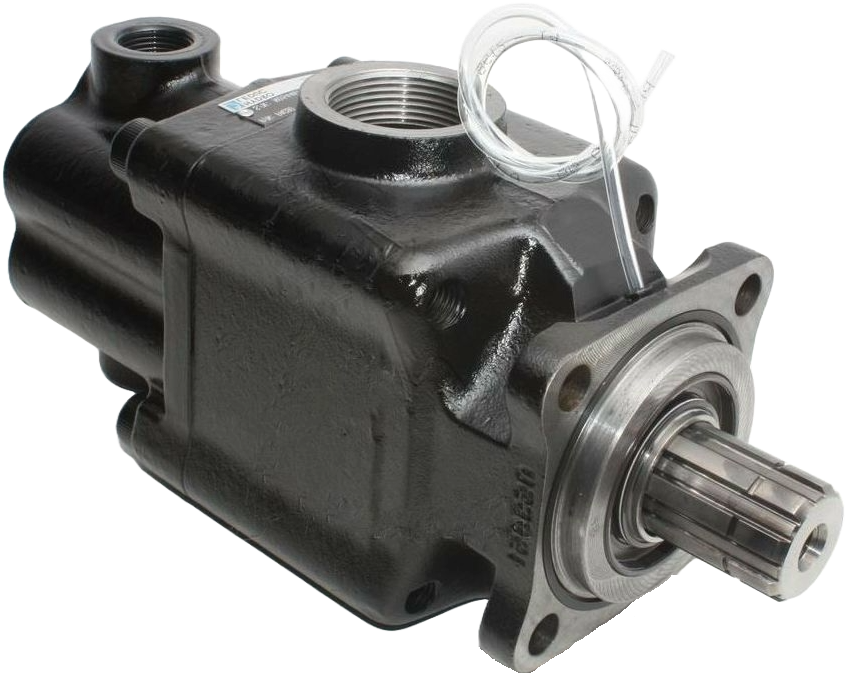

    PLUNGER PUMP PAC 2 X 40 CC

    Welke lengte heeft u nodig?
    /
    U heeft 0 stuks nodig voor 0 euro incl. BTW

      Artikelcode:
      PAC2-40-0511710


    € 2.058,00
    Ask for quotationAdd to wish list
    Product Data Sheet
    Soon on stock again
    Add to favorites
    • Easy online ordering and payment
    • Scroll down for more information
    • We only supply excellent brands
    • Ask for our shipment arrangements
    • Need more info? Ask us below

    Related products

    ADAPTER 3/4" MALE - 1" MALE
    ADAPTER 3/4" MALE - 1" MALE
    In stock
    € 8,00
    Product code: ABM12BM16
    GASKET 4 HOLE ISO
    GASKET 4 HOLE ISO
    In stock
    € 6,00
    Product code: 50700100086
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    In stock
    € 18,00
    Product code: 11400000900
    MULTI SEAL 3/4"
    MULTI SEAL 3/4"
    In stock
    € 2,00
    Product code: BSC12
    SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
    SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
    In stock
    € 55,00
    Product code: 15510000592
    • Product description and specifications
    • Documents
    • Ask a Question

    Barcode

    Product description

    With their unique design, PAC pumps offer a robust and durable solution to the high pressure needs of truck applications. This is the series with the most compact dimensions.
    Combining the automatic dual direction of rotation, high operating pressure of 400 bar (up to 500 bar peak), and their relative insensitivity to lower performance fluids, PAC pumps are the solution for the most demanding environments.

    This Hydro Leduc double pump from the PAC series with order number PAC2-39 0511710 has 2 oil flows of 39 cc each.
    Check the other double pumps for larger or smaller oil volumes.
    We also have many alternatives available for the suction nipples and BSP adapters.

    Documents

    Datasheet PA-PAC series
    Mounting instruction Leduc PA-PAC
    Exploded view PA-PAC series

    Specifications

    BrandHydro Leduc
    Product codePAC2-40-0511710
    Displacement39-39 cm³/rev
    Rotation directionBidirectional
    FlangeISO 7653 4 holes 80 mm
    Pump shaftDIN 5462 8x32x36
    Maximum pressure400 bar
    Maximum rotation speed1350 rpm
    Thread pressG 3/4" + G 3/4"
    Volume range3 - 40 cm³/rev
    Suction connectionG 1-1/2"
