    PLUNGER PUMP F1 25 R PARKER/VOAC

    Welke lengte heeft u nodig?
    /
    U heeft 0 stuks nodig voor 0 euro incl. BTW

      Artikelcode:
      3781024


    € 1.341,00
    Ask for quotationAdd to wish list
    Product Data Sheet
    Available from stock
    Add to favorites
    • Easy online ordering and payment
    • Scroll down for more information
    • We only supply excellent brands
    • Ask for our shipment arrangements
    • Need more info? Ask us below

    Related products

    ADAPTOR 3/4" MALE - 3/4" MALE
    ADAPTOR 3/4" MALE - 3/4" MALE
    In stock
    € 6,00
    Product code: ABM12BM12
    BYPASS 24 VDC FOR F1 25-41-51-61
    BYPASS 24 VDC FOR F1 25-41-51-61
    In stock
    € 893,00
    Product code: 3787201
    GASKET 4 HOLE ISO
    GASKET 4 HOLE ISO
    In stock
    € 6,00
    Product code: 50700100086
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    In stock
    € 18,00
    Product code: 11400000900
    MULTI SEAL 3/4"
    MULTI SEAL 3/4"
    In stock
    € 2,00
    Product code: BSC12
    SUCTION FITTING 45° PARKER 50 MM (60-63)
    SUCTION FITTING 45° PARKER 50 MM (60-63)
    In stock
    € 69,00
    Product code: 3780364
    • Product description and specifications
    • Documents
    • Accessories
    • Ask a Question
    • Alternative products

    Barcode

    Product description

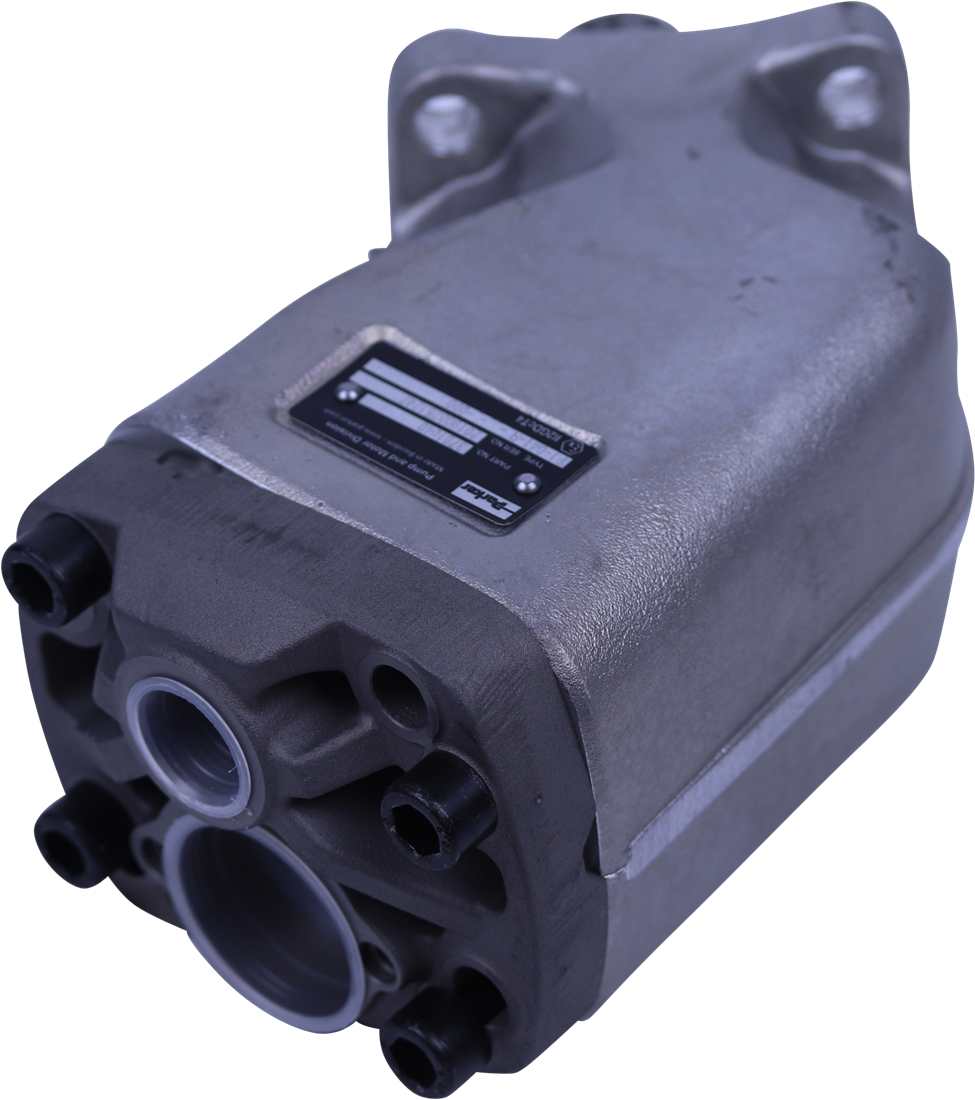

    This Parker plunger pump 3781024 is frequently used in the transport industry. It can be mounted on either a gearbox PTO or an engine PTO with suitable bypass.
    The direction of rotation is very easy to adjust so that this pump is suitable for all truck makes.

    Our recommended suction fitting can also be replaced by one with a different suction hose diameter, see all our suction fittings that fit this pump.
    The nipple on the press with a different thread is also possible, check the BSP adapters for a fitting.
    If more flow or another connection flange is required, see our plunger pumps for an alternative.

    Documents

    Datasheet F1 25-101 ISO
    Installation and start-up information F1/F2/T1
    Exploded view series F1/T1
    Reversing rotating direction

    Specifications

    BrandParker
    Product code3781024
    Displacement25,6 cm³/rev
    Rotation directionClockwise
    FlangeISO 7653 4 holes 80 mm
    Pump shaftDIN 5462 8x32x36
    Maximum pressure400 bar
    Maximum rotation speed3050 rpm
    Thread pressG 3/4"
    Volume range3 - 40 cm³/rev
    Suction connectionFlange with O-ring seal
