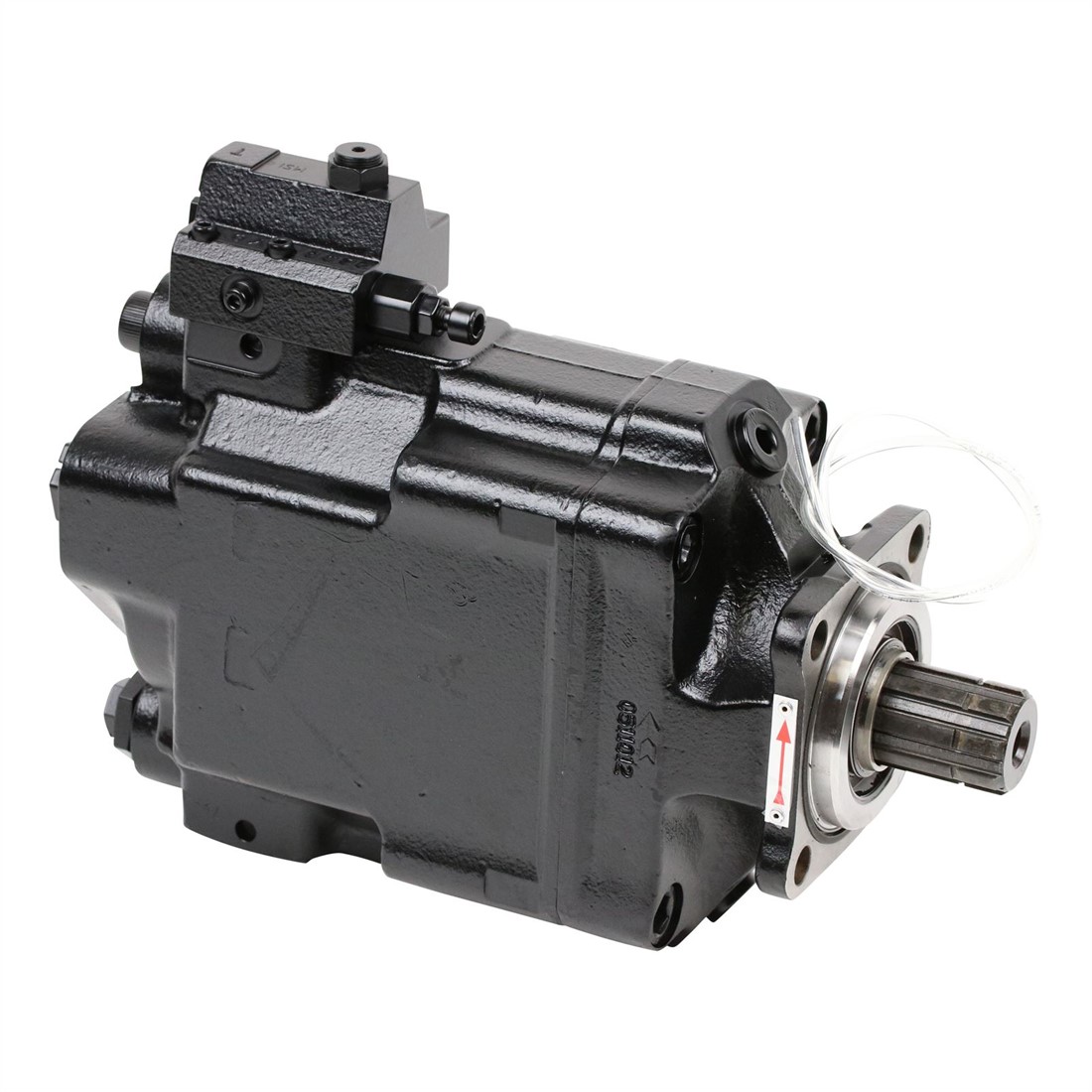

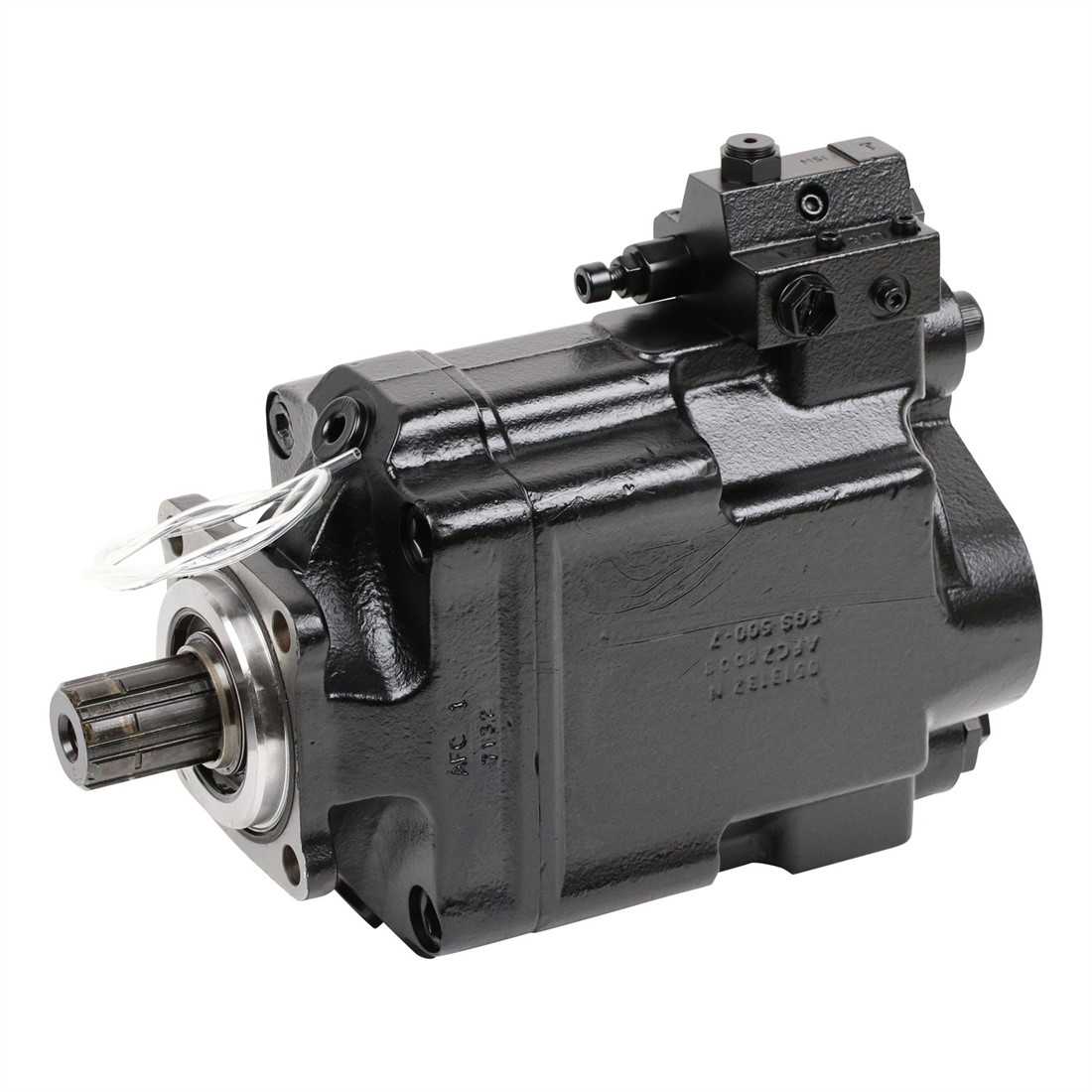

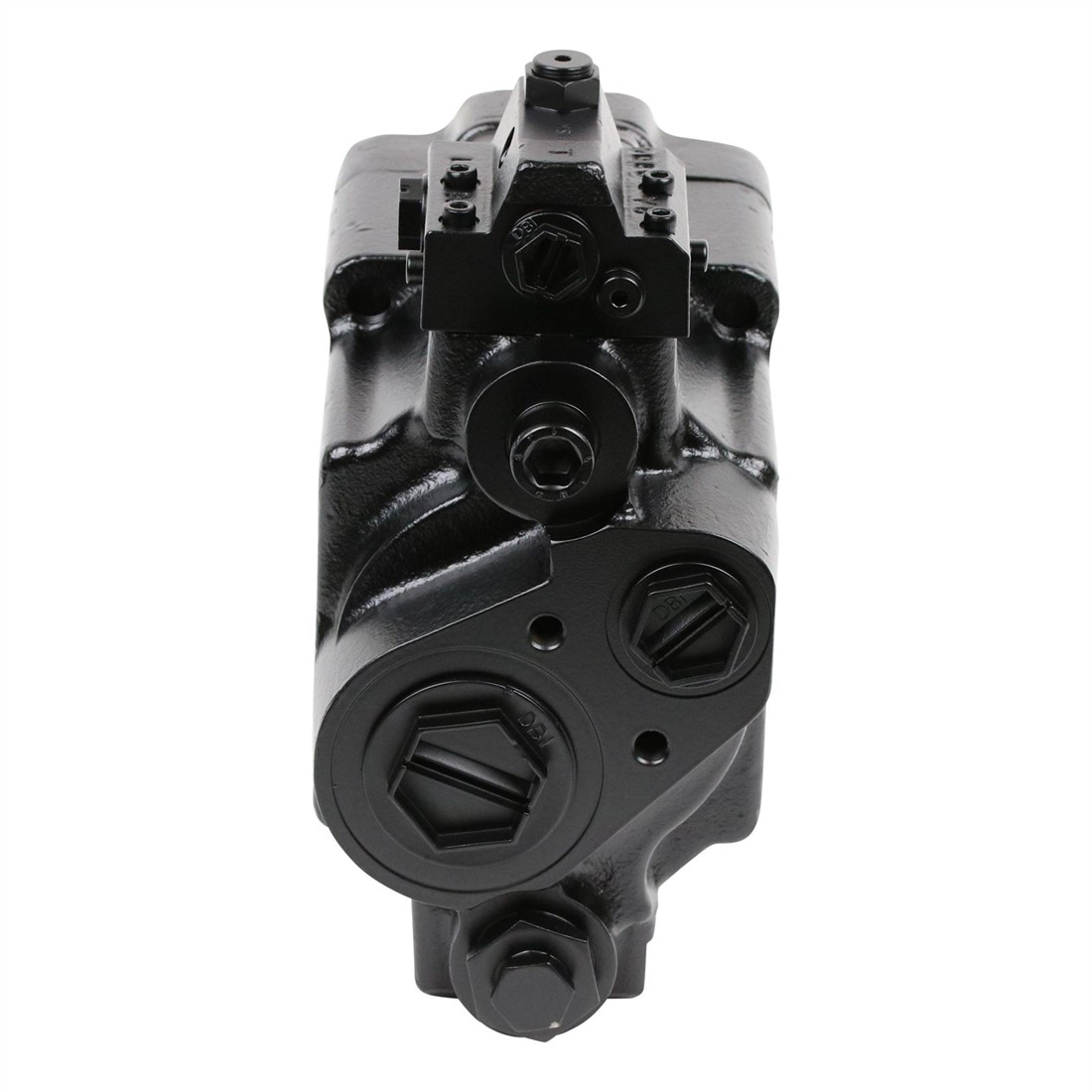

PISTON PUMP VARIABLE DISPLACEMENT RIGHT 60 CC

  Artikelcode:
  TXV60-0512500
€ 3.200,00
Add to wish list
Product Data Sheet
Available from stock
Add to favorites
  • Expertise you can rely on
  • Premium brands only
  • The right solution for every application
  • Fast delivery from stock
  • Worldwide shipping available

Related products

MAXIMUM DISPLACEMENT SETTING SCREW TXV 40-120
MAXIMUM DISPLACEMENT SETTING SCREW TXV 40-120
In stock
€ 130,00
Product code: HL-0518386
MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
In stock
€ 19,00
Product code: 11400000900
SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
In stock
€ 58,00
Product code: 15510000592
  • Product description and specifications
  • Documents
  • Accessories

Product description

Variable piston pump TXV60 from Hydro Leduc with a variable stroke volume of up to 60cc. The pump is clockwise running and suitable for applications up to 400 bar.
See all suction fittings for a suitable one for your application. You can also find a suitable one for the nipple on the press among the BSP adapters.

Documents

Datasheet TXV
Exploded View TXV 40 to 120
Starting Up and Setting of TXV Pumps
Repair Instructions TXV 40 to 120

Specifications

BrandHydro Leduc
Product codeTXV60-0512500
Displacement60 cm³/rev
Rotation directionClockwise
FlangeISO 7653 4 holes 80 mm
Pump shaftDIN 5462 8x32x36
Maximum continuous pressure400 bar
Maximum rotation speed (with load on output)2600 rpm
Pressure connectionG 3/4"
Suction connectionG 1-1/2"
