PISTON PUMP VARIABLE DISPLACEMENT RIGHT 150 CC

  Artikelcode:
  TXV150-0518600
€ 4.885,00
Add to wish list
Product Data Sheet
Available from stock
Add to favorites
  • Expertise you can rely on
  • Premium brands only
  • The right solution for every application
  • Fast delivery from stock
  • Worldwide shipping available

Related products

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
In stock
€ 19,00
Product code: 11400000900
SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
In stock
€ 58,00
Product code: 15510000592
  • Product description and specifications
  • Documents
  • Accessories

Product description

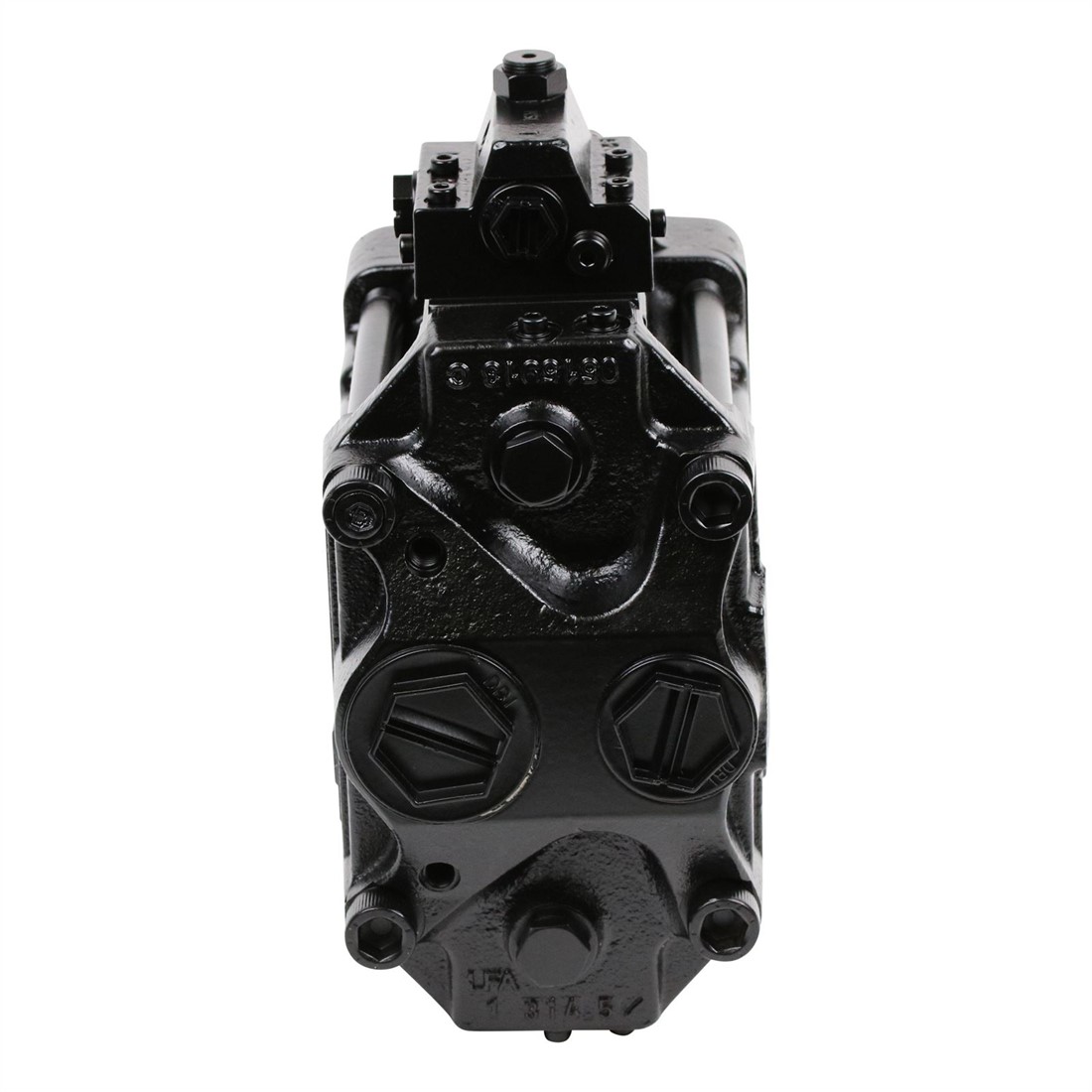

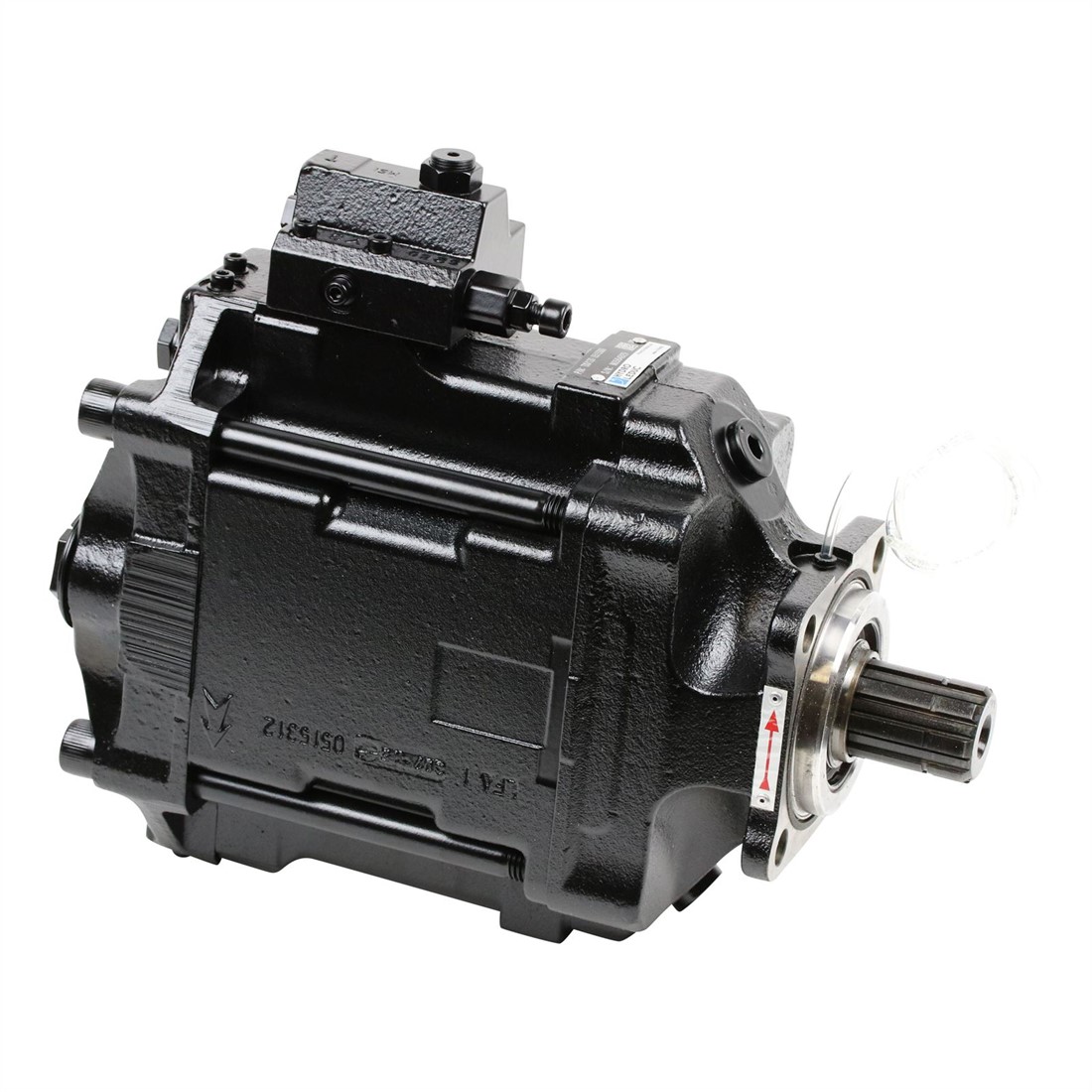

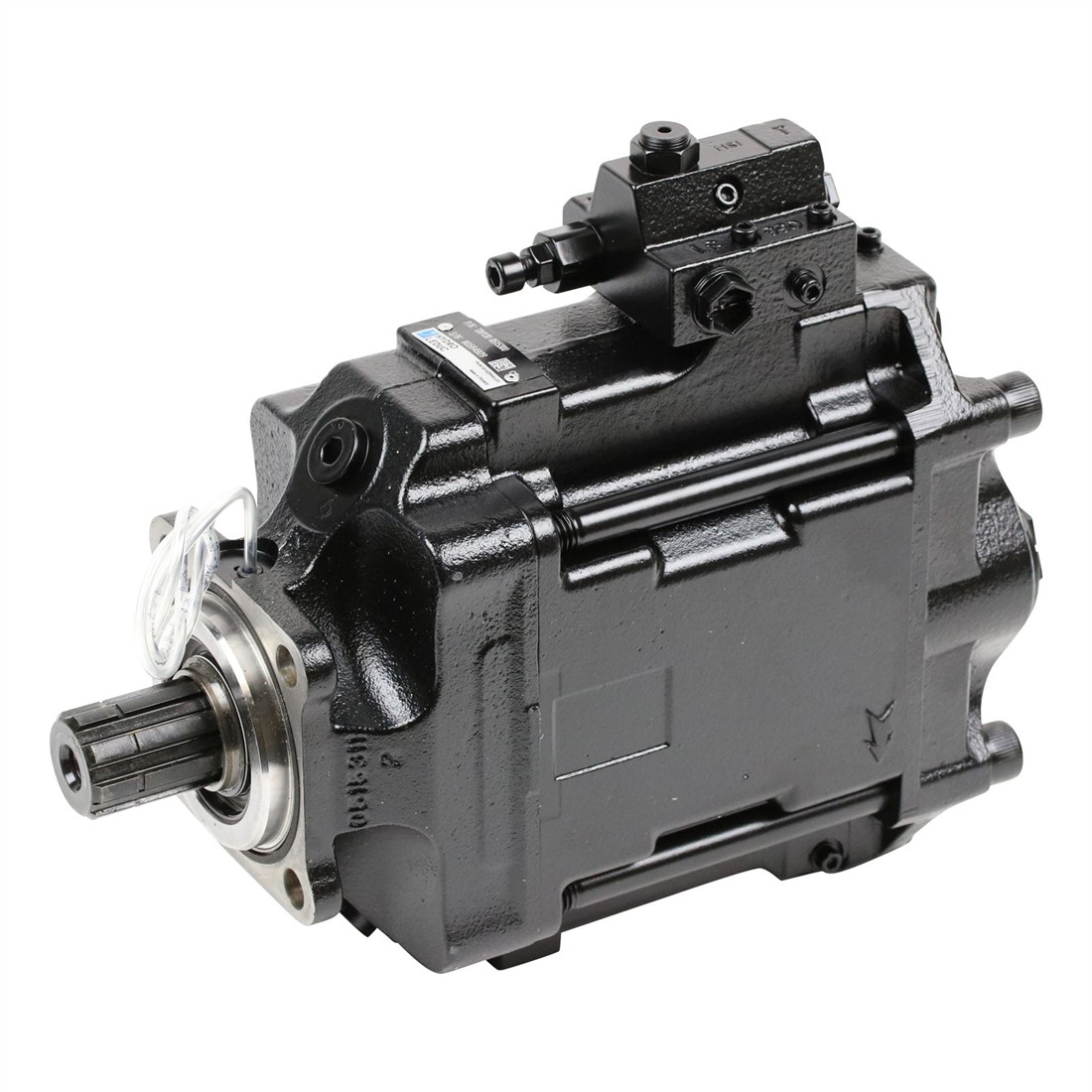

Variable piston pump TXV150 from Hydro Leduc with a variable stroke volume of up to 150cc. The pump is clockwise running and suitable for applications up to 310 bar.
See all suction fittings for a suitable one for your application. You can also find a suitable one for the nipple on the press among the BSP adapters.

Documents

Datasheet TXV
Exploded View TXV 130-150
Starting Up and Setting of TXV Pumps

Specifications

BrandHydro Leduc
Product codeTXV150-0518600
Displacement150 cm³/rev
Rotation directionClockwise
FlangeISO 7653 4 holes 80 mm
Pump shaftDIN 5462 8x32x36
Maximum continuous pressure310 bar
Maximum rotation speed (with load on output)2000 rpm
Pressure connectionG 1"
Suction connectionG 1-1/2"
