MULTIFASTER P510 2 X 1/2" + 2 X 3/4" M

  Artikelcode:
  2P510-4-A M C
€ 350,00
Add to wish list
Product Data Sheet
Available from stock
Add to favorites
  • Expertise you can rely on
  • Premium brands only
  • The right solution for every application
  • Fast delivery from stock
  • Worldwide shipping available

Related products

MULTIFASTER P510 2 X 1/2" + 2 X 3/4" F
MULTIFASTER P510 2 X 1/2" + 2 X 3/4" F
In stock
€ 568,00
Product code: 2P510-4-A F C
MULTIFASTER PH510 2 X 1/2" + 2 X 3/4" F (HIGH PRESSURE 460 BAR)
MULTIFASTER PH510 2 X 1/2" + 2 X 3/4" F (HIGH PRESSURE 460 BAR)
In stock
€ 745,00
Product code: PH510-4-A F C
DOCKING STATION MULTIFASTER P510/P510G
DOCKING STATION MULTIFASTER P510/P510G
In stock
€ 237,00
Product code: S P510
  • Product description and specifications
  • Documents
  • Accessories

Product description

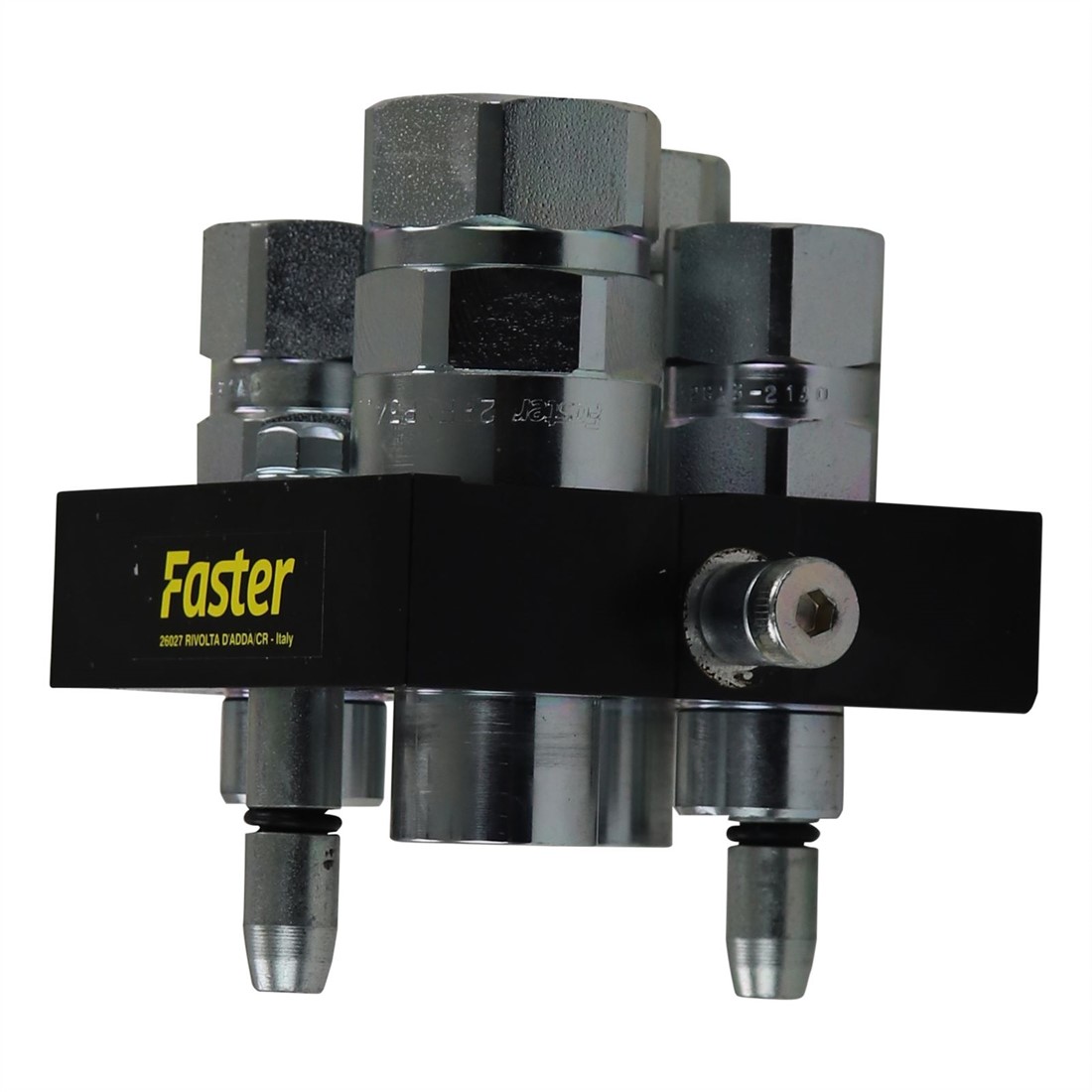

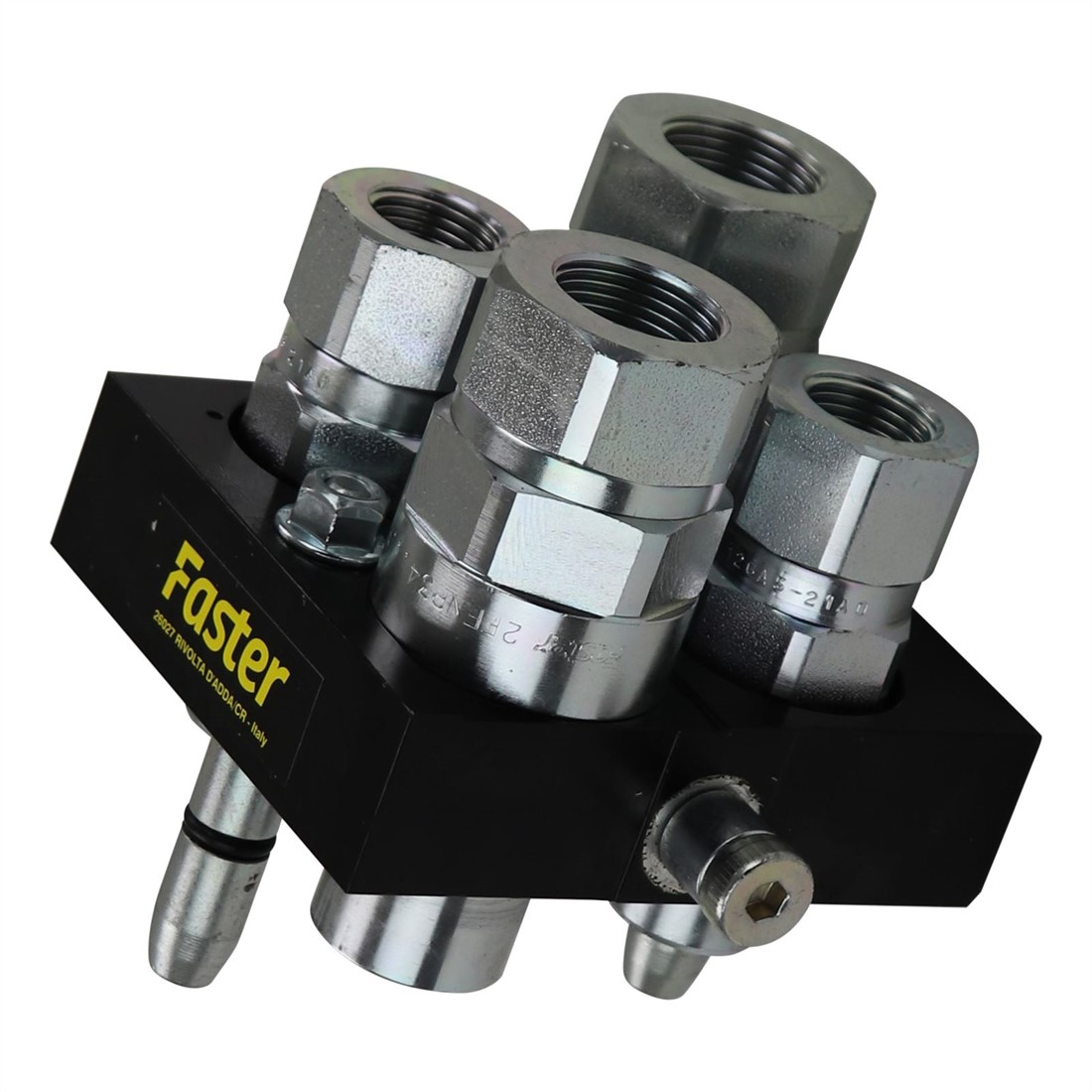

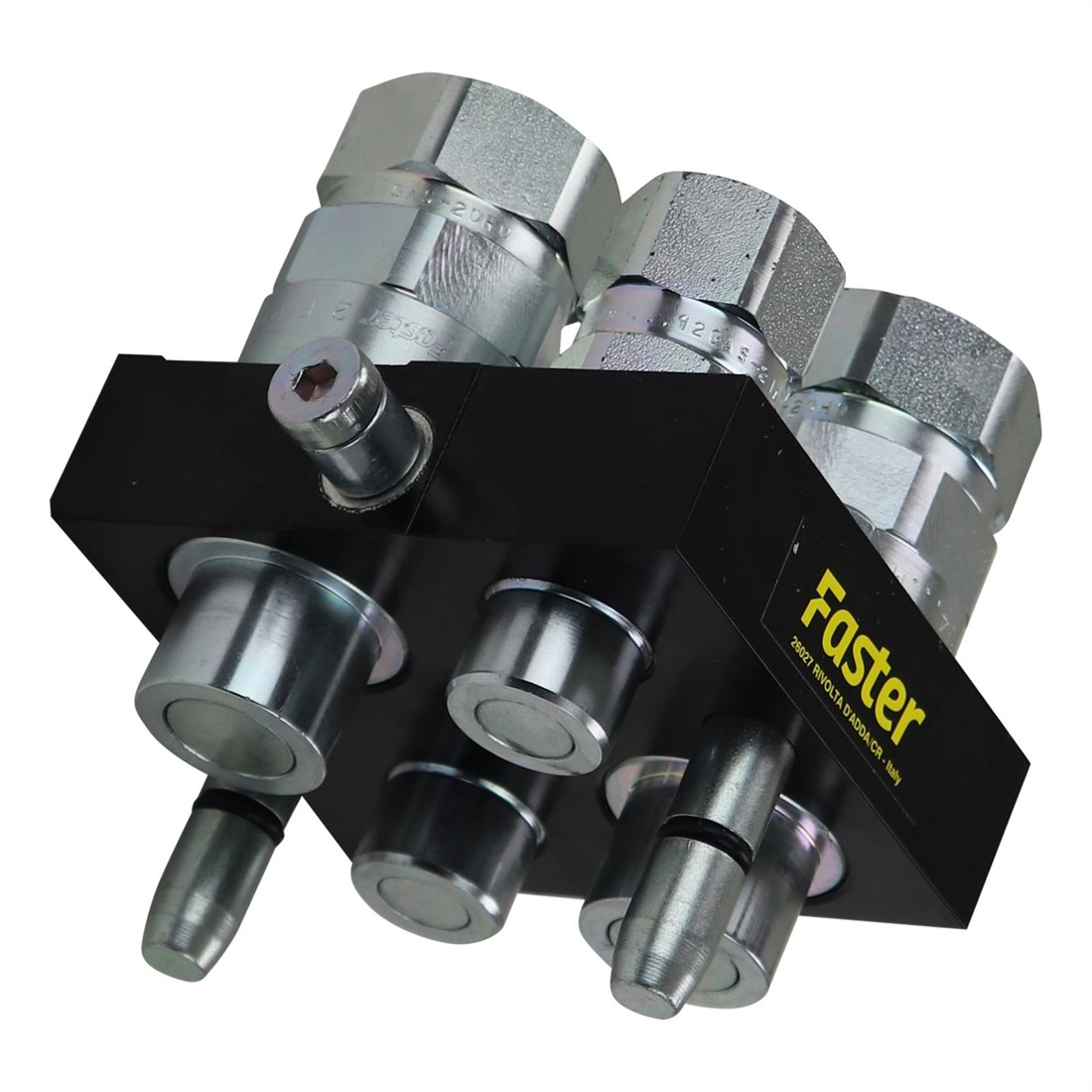

MultiFaster P510 with 2 couplings body size 1/2" - female thread BSPP 1/2" and 2 couplings body size 3/4" - female thread BSPP 3/4" (ISO 1179-1). This is the male, mobile part.
This P510 MultiFaster coupling makes it possible to connect several hoses with one hand, even if there is residual pressure in the system. Swapping hoses is no longer possible, air entrapment during connection and disconnection of hoses or fluid leakage are a thing of the past.

Documents

Datasheet MultiFaster P510

Specifications

BrandFaster
Product code2P510-4-A M C
TypeMultiFaster P510
Quick coupling typeMultiple
Flat face
Number of couplings4
Body size1/2"
3/4"
Thread1/2" BSPP
3/4" BSPP
MaterialAluminium
Steel
SealsNBR & PUR
Connection under pressureAllowed (residual)
Flow rate (at 2 bar)70 & 105 L/min
Working pressure250 bar

Accessories

CARTRIDGE 2P 1/2" (SIZE 08) BSPP 1/2" FOR MALE MULTIFASTER
CARTRIDGE 2P 1/2" (SIZE 08) BSPP 1/2" FOR MALE MULTIFASTER
In stock
€ 57,00
Product code: KIT2FNP12GAS M
CARTRIDGE 2P 3/4" (SIZE 12) BSPP 3/4" FOR MALE MULTIFASTER
CARTRIDGE 2P 3/4" (SIZE 12) BSPP 3/4" FOR MALE MULTIFASTER
In stock
€ 97,00
Product code: KIT2FNP34GAS M
DUST COVER MULTIFASTER P5
DUST COVER MULTIFASTER P5
In stock
€ 59,00
Product code: KIT TA P5
SCREW KIT HAND LEVER FASTER P208/P508/P808/P510
SCREW KIT HAND LEVER FASTER P208/P508/P808/P510
In stock
€ 25,00
Product code: KIT VP8
SEAL KIT MULTIFASTER (SET OF 10) MALE 1/2"
SEAL KIT MULTIFASTER (SET OF 10) MALE 1/2"
In stock
€ 85,00
Product code: SK MF 12
SEAL KIT MULTIFASTER (SET OF 10) MALE 3/4"
SEAL KIT MULTIFASTER (SET OF 10) MALE 3/4"
Soon on stock again
€ 98,00
Product code: SK MF 34
