MULTIFASTER P510 2 X 1/2" + 2 X 3/4" F

Artikelcode: 2P510-4-A F C
€ 568,00 Processing... Add to wish list
Product Data Sheet
Available from stock

Add to favorites

Expertise you can rely on
Premium brands only
The right solution for every application
Fast delivery from stock
Worldwide shipping available

Related products

MULTIFASTER P510 2 X 1/2" + 2 X 3/4" M

In stock

€ 350,00

Product code: 2P510-4-A M C

MULTIFASTER PH510 2 X 1/2" + 2 X 3/4" F (HIGH PRESSURE 460 BAR)

In stock

€ 745,00

Product code: PH510-4-A F C

Product description and specifications
Documents
Accessories

Product description

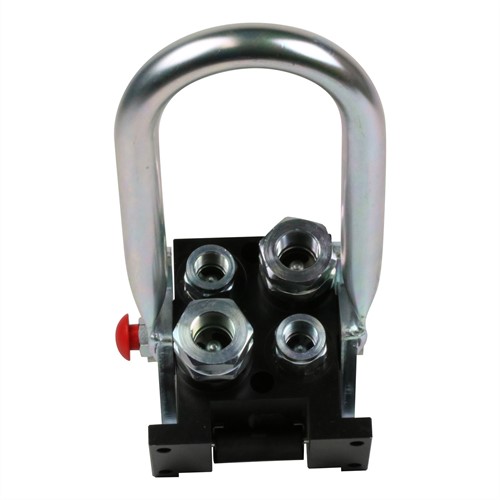

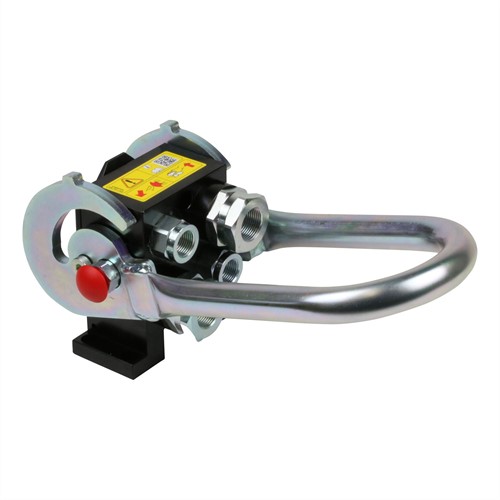

MultiFaster P510 with 2 couplings body size 1/2" - female thread BSPP 1/2" and 2 couplings body size 3/4" - female thread BSPP 3/4" (ISO 1179-1). This is the female, fixed part.
This MultiFaster P510 coupling makes it possible to connect several hoses with one hand, even if there is residual pressure in the system. Swapping hoses is no longer possible, air entrapment during connection and disconnection of hoses or fluid leakage are a thing of the past.

Documents

Datasheet MultiFaster P510

Specifications

Brand	Faster
Product code	2P510-4-A F C
Type	MultiFaster P510
Quick coupling type	Multiple Flat face
Number of couplings	4
Body size	1/2" 3/4"
Thread	1/2" BSPP 3/4" BSPP
Material	Aluminium Steel
Seals	NBR & PUR
Connection under pressure	Allowed (residual)
Flow rate (at 2 bar)	70 & 105 L/min
Working pressure	250 bar
