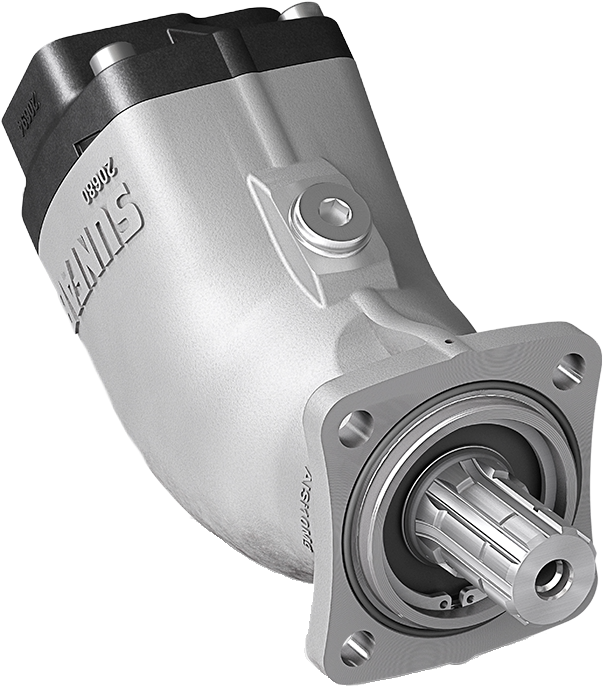

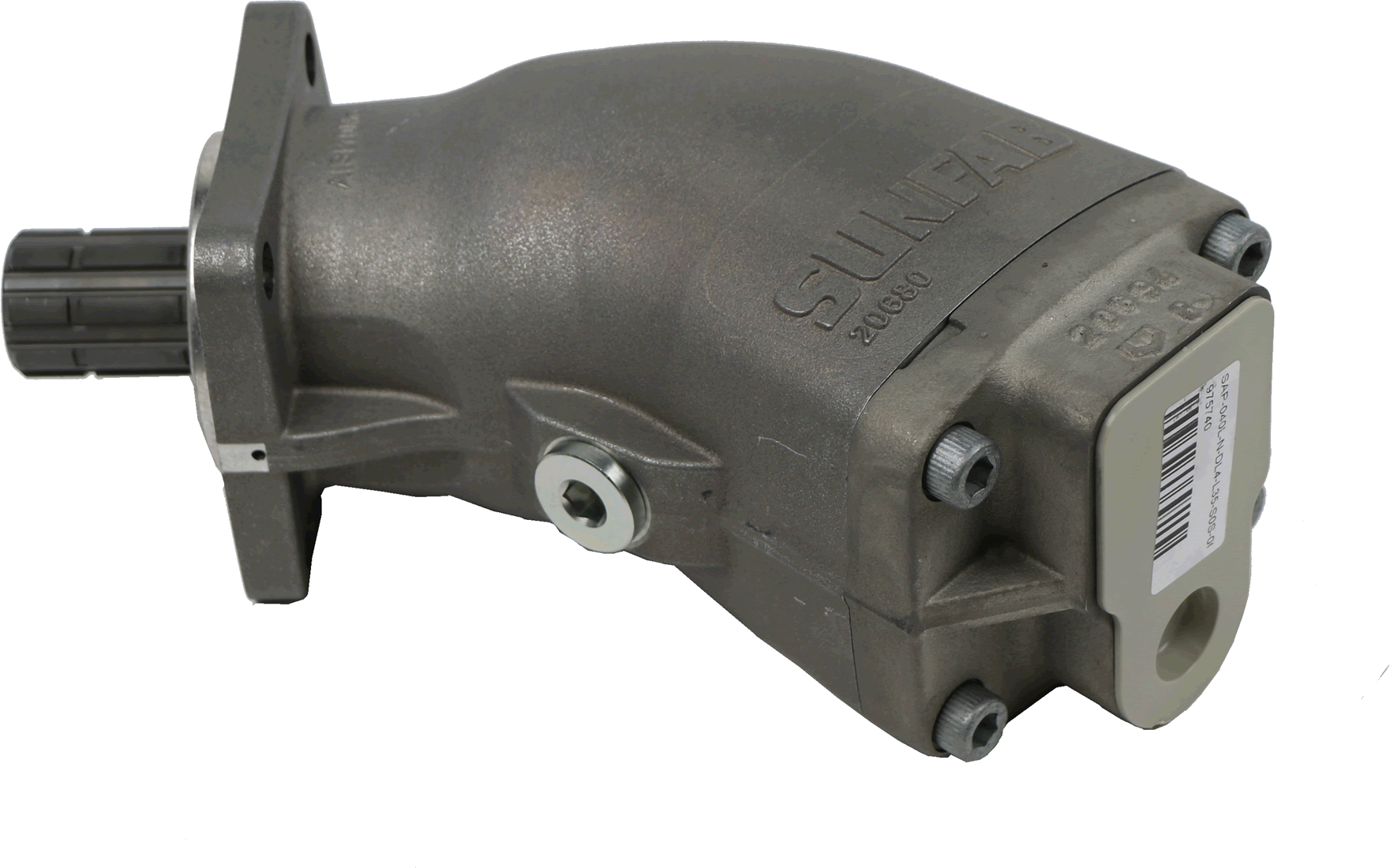

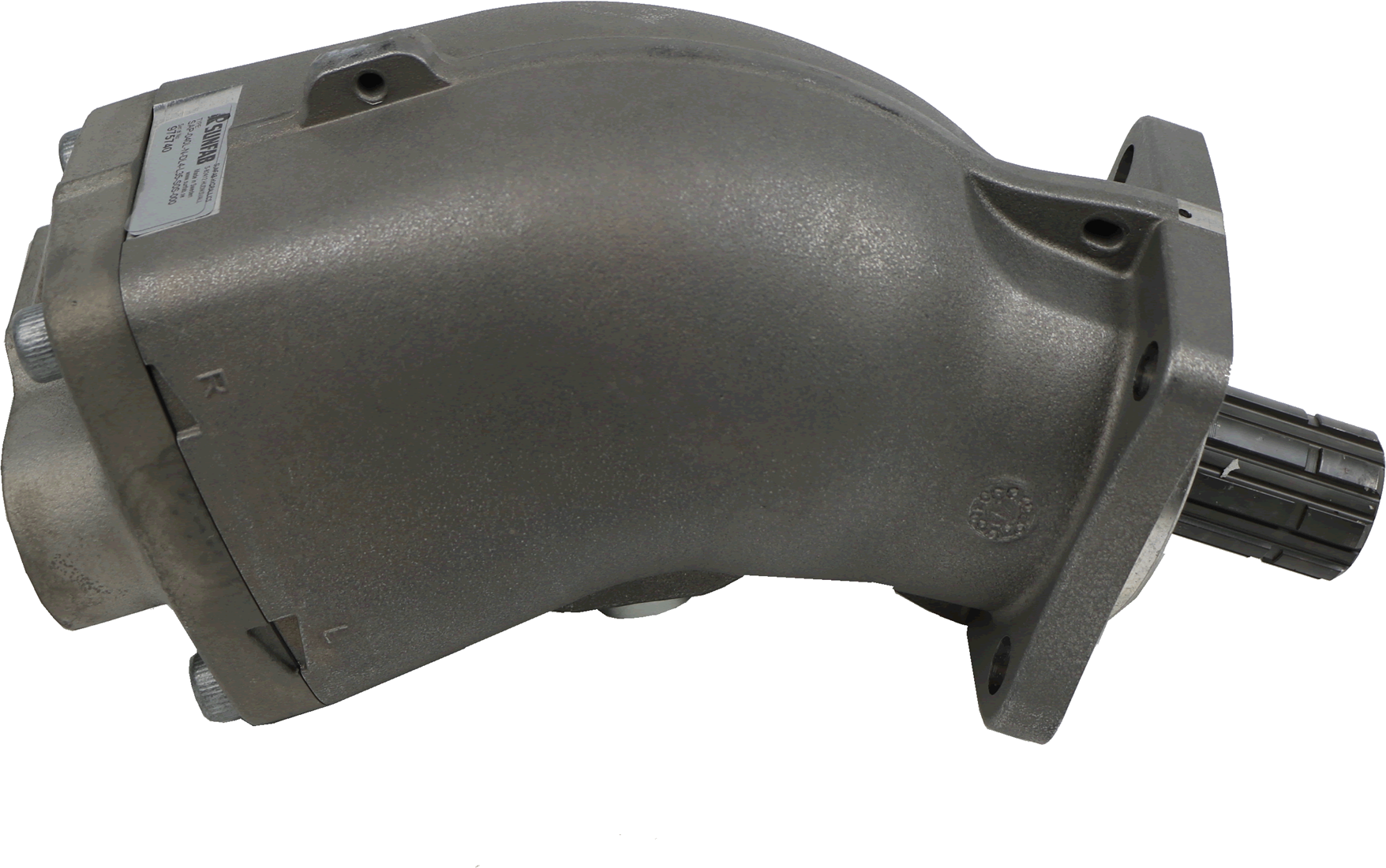

    SUNFAB PLUNGER PUMP SAP-040 R

    Welke lengte heeft u nodig?
    /
    U heeft 0 stuks nodig voor 0 euro incl. BTW

      Artikelcode:
      SF23040R


    € 1.125,00
    Ask for quotationAdd to wish list
    Product Data Sheet
    Soon on stock again
    Add to favorites
    • Easy online ordering and payment
    • Scroll down for more information
    • We only supply excellent brands
    • Ask for our shipment arrangements
    • Need more info? Ask us below

    Related products

    ADAPTOR 3/4" MALE - 3/4" MALE
    ADAPTOR 3/4" MALE - 3/4" MALE
    In stock
    € 6,00
    Product code: ABM12BM12
    BYPASS VALVE SUNFAB SC-012-064 24VDC
    BYPASS VALVE SUNFAB SC-012-064 24VDC
    In stock
    € 623,00
    Product code: SF91073
    CONNECTION FOR SUCTION FITTING SUNFAB SC64-SCT90 1"
    CONNECTION FOR SUCTION FITTING SUNFAB SC64-SCT90 1"
    Soon on stock again
    € 62,00
    Product code: SF50403
    GASKET 4 HOLE ISO
    GASKET 4 HOLE ISO
    In stock
    € 6,00
    Product code: 50700100086
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    In stock
    € 18,00
    Product code: 11400000900
    MULTI SEAL 3/4"
    MULTI SEAL 3/4"
    In stock
    € 2,00
    Product code: BSC12
    • Product description and specifications
    • Documents
    • Accessories
    • Ask a Question

    Barcode

    Product description

    This small plunger pump from Sunfab with product code SF23040R is a right-turning pump designed for applications involving high pressure. The direction of rotation is easily adjustable, making this pump suitable for both PTO rotation directions. The suction fitting is included with this pump.
    Another pressure nipple with a different thread is possible; check the BSP adapters for a suitable one.
    Another suction fitting is also possible; check the appropriate suction fittings for this.
    If more flow or a different connection flange is desired, please check our plunger pumps for an alternative.

    Documents

    Datasheet SAP/SAPT 012-130 DIN
    Mounting instruction SAP/SAPT DIN
    Exploded view SAP 040 DIN
    Reversing rotating direction

    Specifications

    BrandSunfab
    Product codeSF23040R
    Displacement41,2 cm³/rev
    Rotation directionClockwise
    FlangeISO 7653 4 holes 80 mm
    Pump shaftDIN 5462 8x32x36
    Maximum pressure400 bar
    Maximum rotation speed1900 rpm
    Thread pressG 3/4"
    Volume range41 - 79 cm³/rev
    Suction connectionFlange with O-ring seal

    Accessories

    SEAL KIT SUNFAB SAP 040-064
    SEAL KIT SUNFAB SAP 040-064
    On order
    Product code: SF50906
    GASKET COVER SUNFAB SAP 040-064
    GASKET COVER SUNFAB SAP 040-064
    In stock
    € 12,00
    Product code: SF20599
    SUNFAB SUCTION CONNECTION KIT SC 12-64
    SUNFAB SUCTION CONNECTION KIT SC 12-64
    In stock
    € 25,00
    Product code: SF50339
