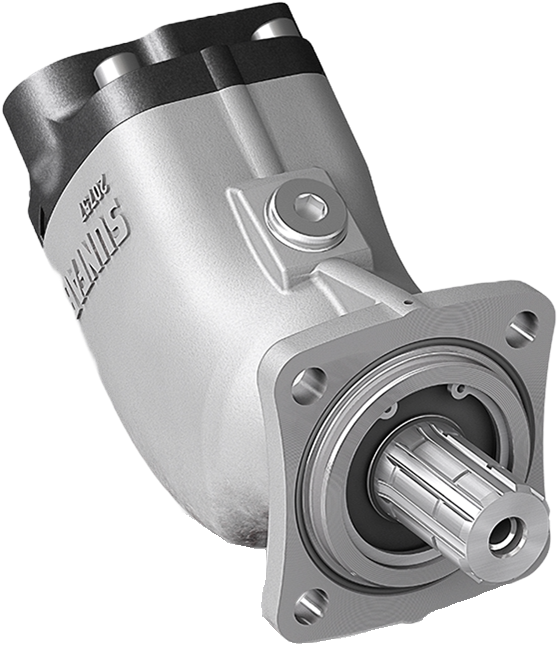

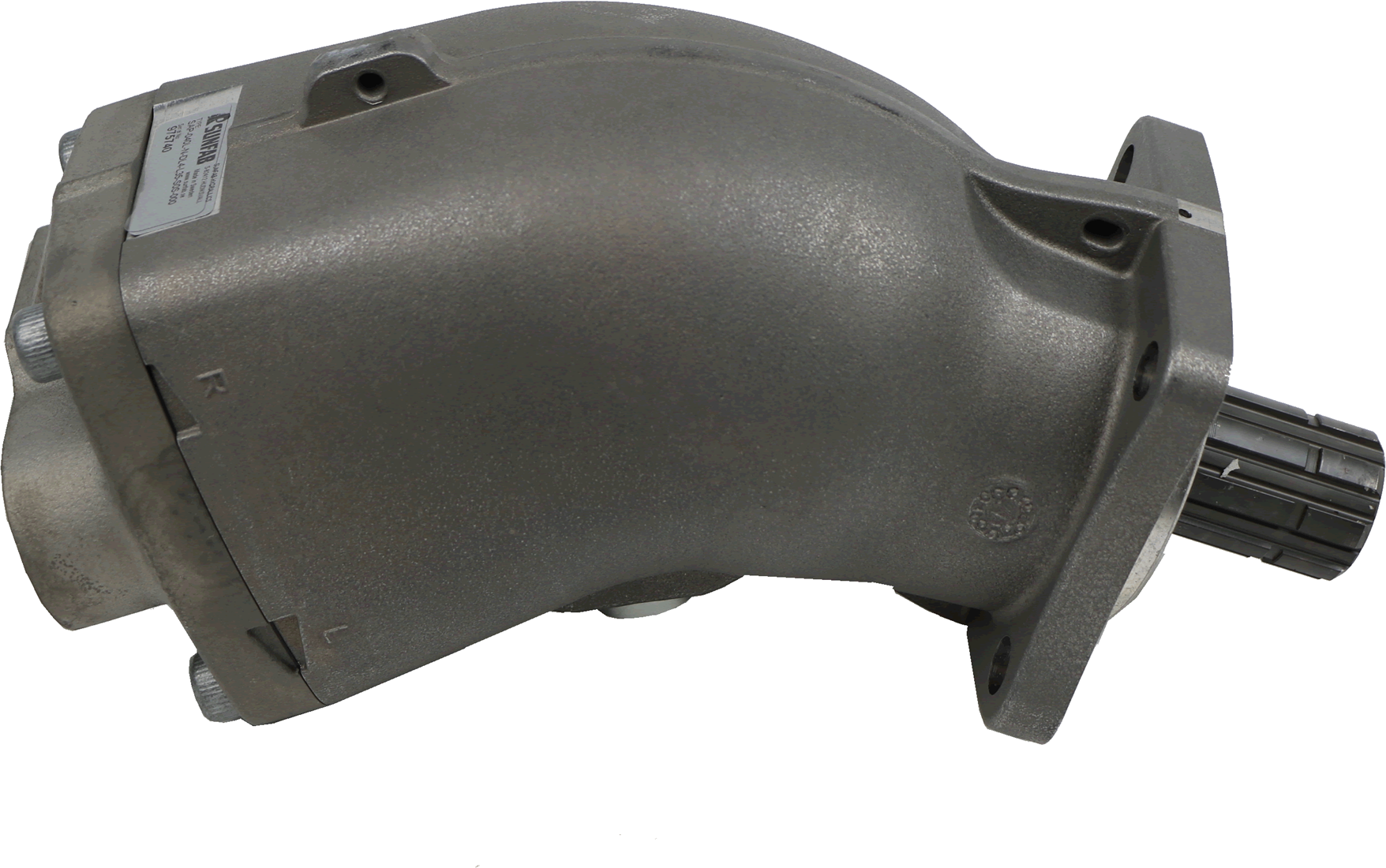

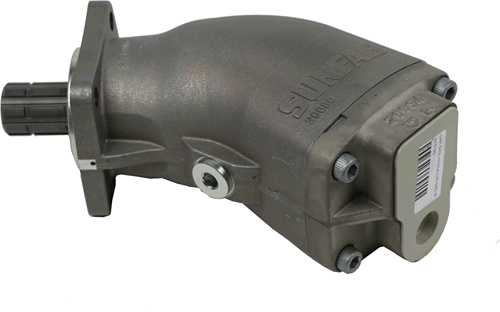

SUNFAB PLUNGER PUMP SAP-034 R

  Artikelcode:
  SF23034R
€ 1.136,00
Ask for quotationAdd to wish list
Product Data Sheet
Available from stock
Add to favorites
  • Easy online ordering and payment
  • Scroll down for more information
  • We only supply excellent brands
  • Ask for our shipment arrangements
  • Need more info? Ask us below

Related products

BYPASS VALVE SUNFAB SC-012-064 24VDC
BYPASS VALVE SUNFAB SC-012-064 24VDC
In stock
€ 735,00
Product code: SF91073
CONNECTION FOR SUCTION FITTING SUNFAB SC64-SCT90 1"
CONNECTION FOR SUCTION FITTING SUNFAB SC64-SCT90 1"
In stock
€ 66,00
Product code: SF50403
MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
In stock
€ 19,00
Product code: 11400000900
SUCTION FITTING 45° SUNFAB SC64-SCT90 38 MM (48-51)
SUCTION FITTING 45° SUNFAB SC64-SCT90 38 MM (48-51)
In stock
€ 60,00
Product code: SF20100
SUCTION FITTING 45° SUNFAB SC64-SCT90 50 MM (60-63)
SUCTION FITTING 45° SUNFAB SC64-SCT90 50 MM (60-63)
In stock
€ 63,00
Product code: SF20101
SUCTION FITTING STRAIGHT SUNFAB SC64-SCT90 50 MM (60-63)
SUCTION FITTING STRAIGHT SUNFAB SC64-SCT90 50 MM (60-63)
In stock
€ 72,00
Product code: SF21178
  • Product description and specifications
  • Documents
  • Accessories

Product description

This small plunger pump from Sunfab with product code SF23034R is a right-turning pump designed for applications involving high pressure. The direction of rotation is easily adjustable, making this pump suitable for both PTO rotation directions.
Another pressure nipple with a different thread is possible check the BSP adapters for a suitable one.
Another suction fitting is also possible check the appropriate suction fittings for this.
If more flow or a different connection flange is desired, please check our plunger pumps for an alternative.

Documents

Datasheet SAP/SAPT 012-130 DIN
Exploded View SAP 034 DIN
Installation Guide + Reversing Rotating Direction SAP/SAPT DIN

Specifications

BrandSunfab
Product codeSF23034R
Displacement34,2 cm³/rev
Rotation directionClockwise
FlangeISO 7653 4 holes 80 mm
Pump shaftDIN 5462 8x32x36
Maximum continuous pressure400 bar
Maximum rotation speed (with load on output)2300 rpm
Thread pressG 3/4"
Suction connectionFlange with O-ring seal
