SCREW TO CONNECT COUPLING GROMELLE W6000 3/4" FEMALE

Artikelcode: WA0604700 € 140,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

SCREW TO CONNECT COUPLING GROMELLE W6000 3/4" MALE

On order

€ 90,00

Product code: WA0604400

DUST PLUG GROMELLE W6000 3/4" FEMALE

In stock

€ 25,00

Product code: WD0614700

Product description and specifications
Documents
Ask a Question

Product description

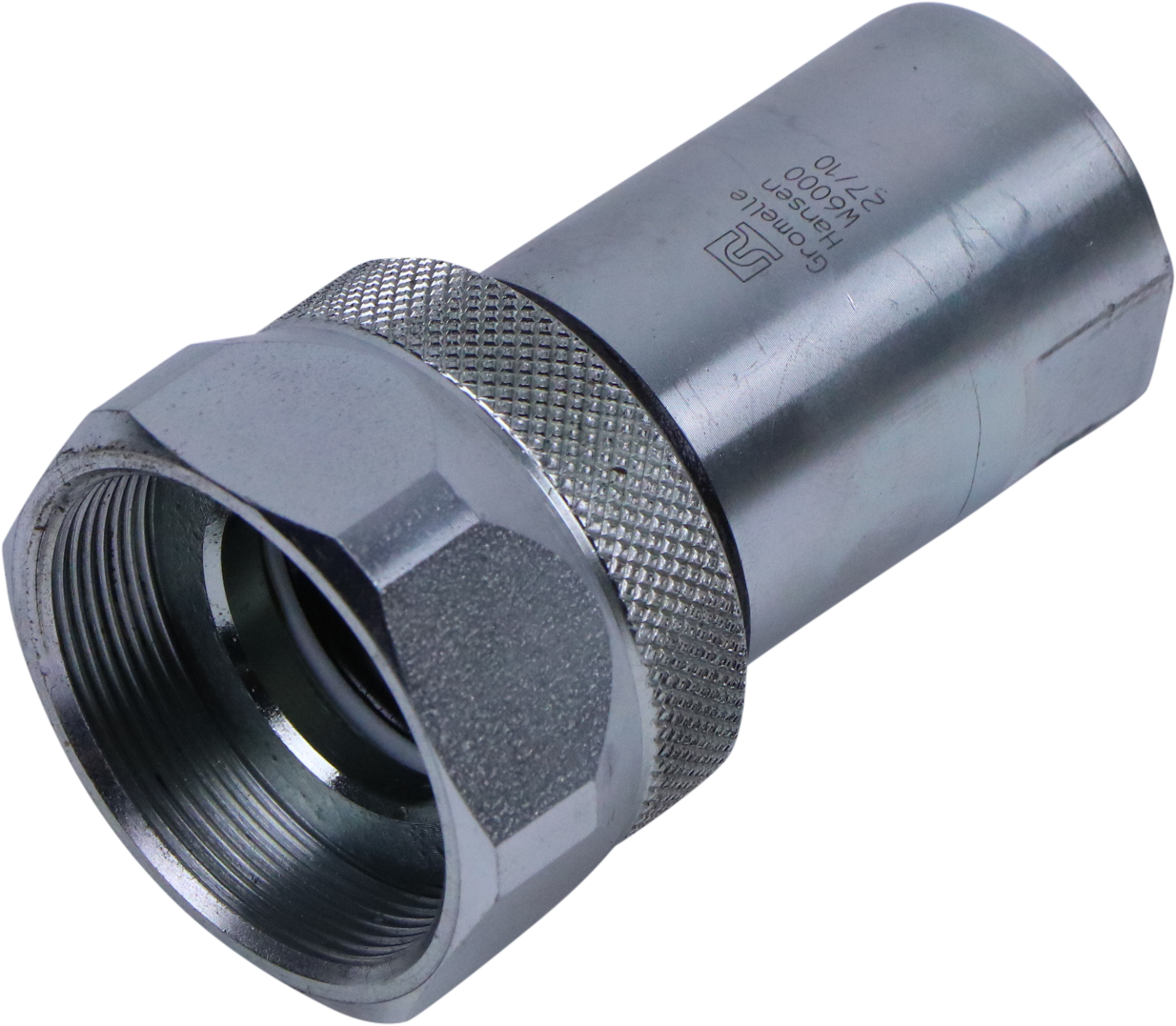

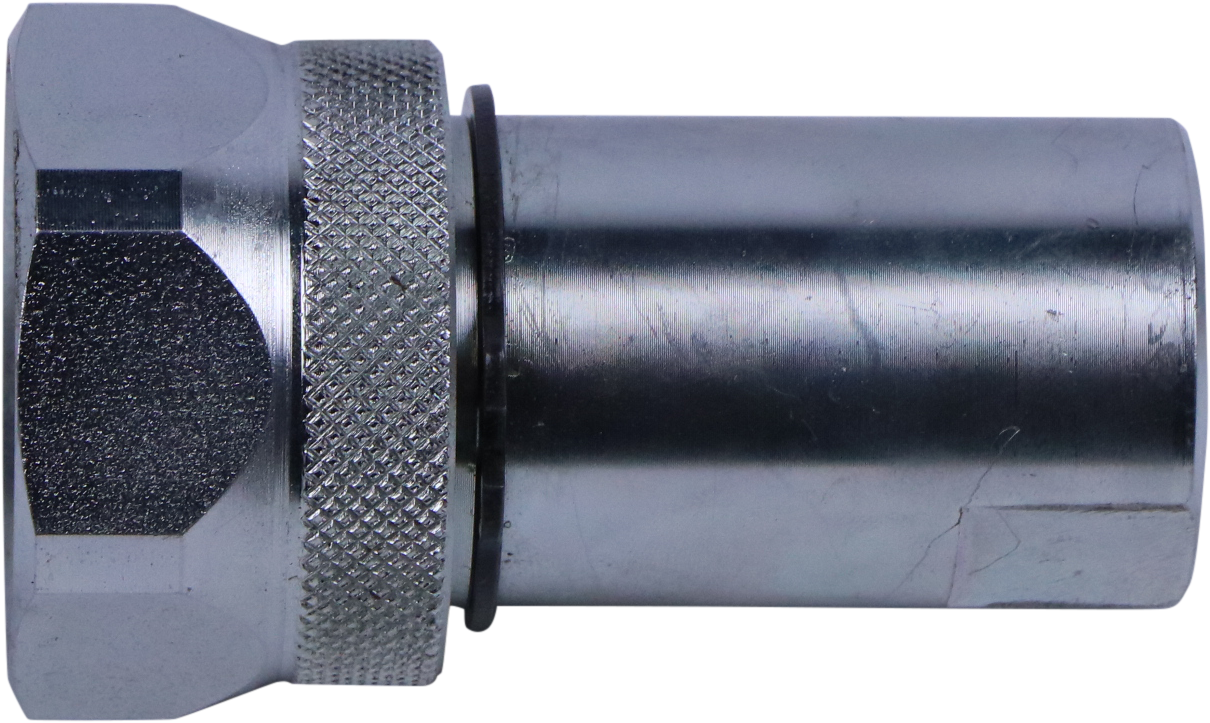

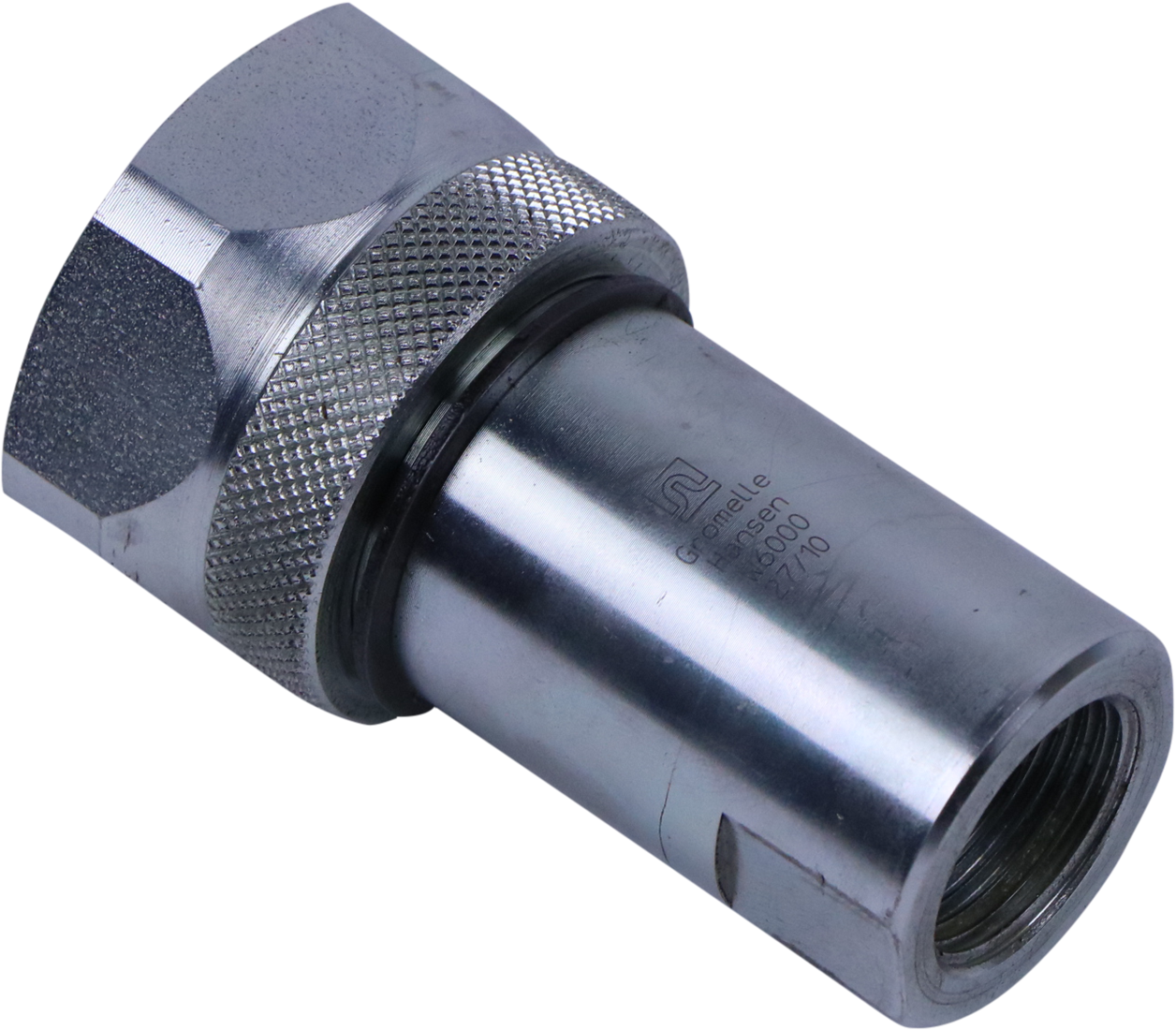

Gromelle quick release coupling female W6000 3/4" with connection BSPP 3/4".
Material seal NBR.

Featuring the original Gromelle™ profile, it remains as the series users prefer when it comes to severe hydraulic applications such as high pressure, pressure impulses, heavy mechanical loads and frequent connection and disconnection cycles.
The unique sleeve lock option offers a reliable solution and benefit to the end user when safety is a concern.

Documents

Datasheet W6000

Specifications

Brand	Gromelle
Product code	WA0604700
Quick coupling type	Screw-on
Type	Gromelle W6000
Body size	3/4"
Thread	3/4" BSPP
Material	Steel
Seals	NBR
Connection under pressure	Allowed (residual)
Flow rate (at 1 bar)	55 L/min
Working pressure	650 bar
