    PLUNGER PUMP VARIABLE DISPLACEMENT RIGHT 60 CC

    Welke lengte heeft u nodig?
    /
    U heeft 0 stuks nodig voor 0 euro incl. BTW

      Artikelcode:
      TXV60-0512500


    € 3.200,00
    Ask for quotationAdd to wish list
    Product Data Sheet
    Available from stock
    Add to favorites
    • Easy online ordering and payment
    • Scroll down for more information
    • We only supply excellent brands
    • Ask for our shipment arrangements
    • Need more info? Ask us below

    Related products

    ADAPTOR 3/4" MALE - 3/4" MALE
    ADAPTOR 3/4" MALE - 3/4" MALE
    In stock
    € 6,00
    Product code: ABM12BM12
    GASKET 4 HOLE ISO
    GASKET 4 HOLE ISO
    In stock
    € 6,00
    Product code: 50700100086
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    In stock
    € 18,00
    Product code: 11400000900
    MULTI SEAL 3/4"
    MULTI SEAL 3/4"
    In stock
    € 2,00
    Product code: BSC12
    SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
    SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
    In stock
    € 55,00
    Product code: 15510000592
    • Product description and specifications
    • Documents
    • Accessories
    • Ask a Question

    Barcode

    Product description

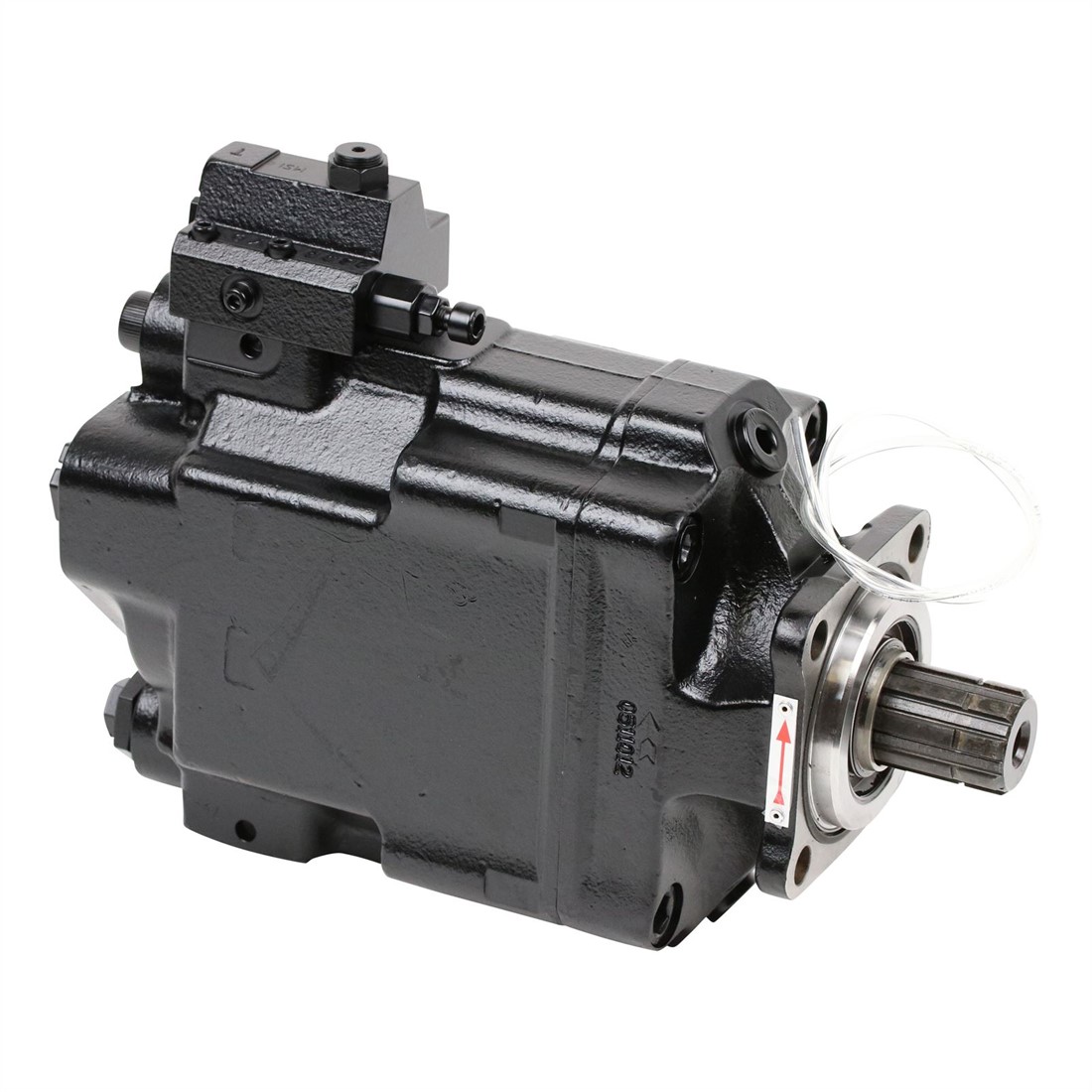

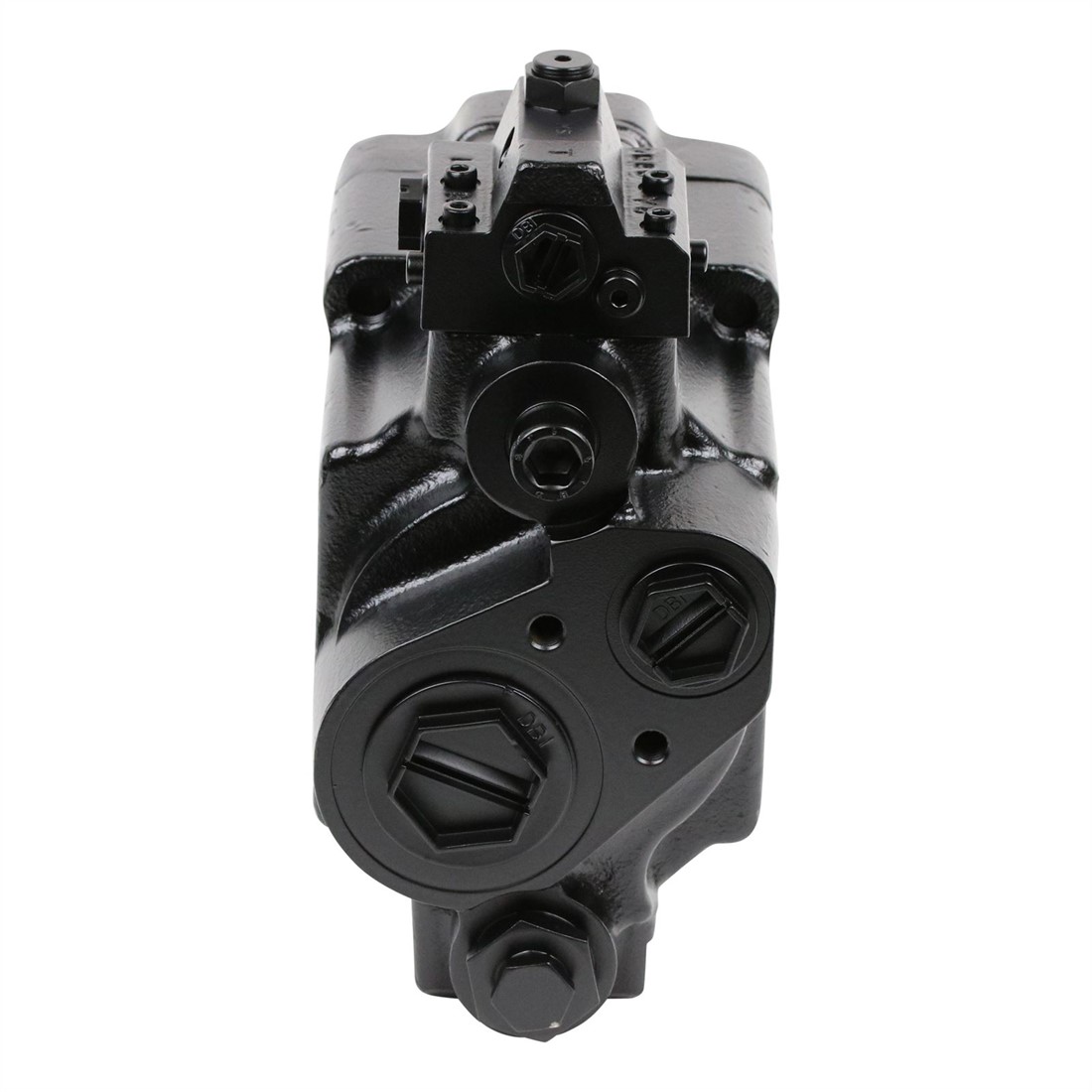

    Variable plunger pump TXV60 from Hydro Leduc with a variable stroke volume of up to 60cc. The pump is clockwise running and suitable for applications up to 400 bar.
    See all suction fittings for a suitable one for your application. You can also find a suitable one for the nipple on the press among the BSP adapters.

    Documents

    Datasheet TXV
    Mounting instruction Leduc TXV
    Exploded view TXV 40 to 120

    Specifications

    BrandHydro Leduc
    Product codeTXV60-0512500
    Displacement60 cm³/rev
    Rotation directionClockwise
    FlangeISO 7653 4 holes 80 mm
    Pump shaftDIN 5462 8x32x36
    Maximum pressure400 bar
    Maximum rotation speed2600 rpm
    Thread pressG 3/4"
    Volume range41 - 79 cm³/rev
    Suction connectionG 1-1/2"
