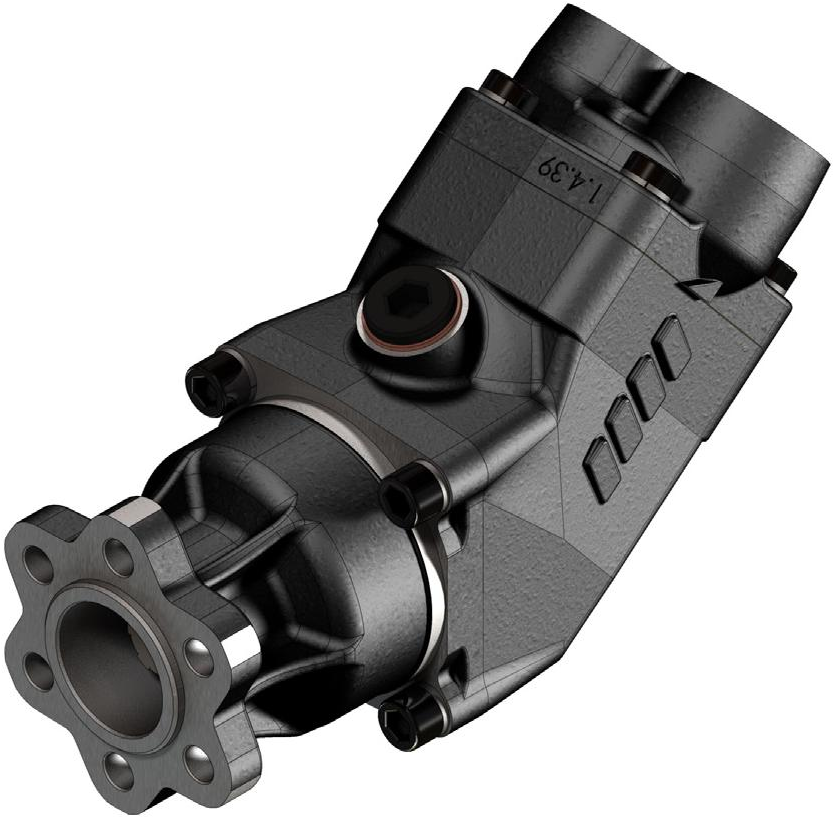

PLUNGER PUMP HDS 12 S UNI

Artikelcode: 60600210129 € 948,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTOR 3/4" MALE - 3/4" MALE

In stock

€ 6,00

Product code: ABM12BM12

BYPASS VALVE (PILOT) 24V HDS 12-34

In stock

€ 578,00

Product code: 10820024341

GASKET 3 HOLE UNI

In stock

€ 4,00

Product code: 50700000014

MOUNTING KIT UNI COMPLETE

In stock

€ 19,00

Product code: 11400010604

MULTI SEAL 3/4"

In stock

€ 2,00

Product code: BSC12

SUCTION FITTING 45° 1" X 38 MM INCL HOSE CLAMP 48-51 MM

In stock

€ 50,00

Product code: 15509000460

Product description and specifications
Documents
Ask a Question

Product description

This small OMFB plunger pump for a 3-hole PTO with order number 606 002 10129 is a suitable alternative to a Parker, Sunfab and/or Edbro pump. The direction of rotation is very easy to adjust so that this pump is suitable for both directions of rotation of a PTO.

Our recommended suction fitting can also be replaced by one with a different suction hose diameter, see all our suction fittings that fit this pump.
The nipple on the press with a different thread is also possible, check the BSP adapters for a fitting.
If more flow or another connection flange is required, see our plunger pumps for an alternative.

Documents

Datasheet HDS UNI 12-34

Mounting instruction bent axis pumps

Exploded view HDS UNI 12-17

Reversing rotating direction

Specifications

Brand	OMFB
Product code	60600210129
Displacement	12,62 cm³/rev
Rotation direction	Counterclockwise
Flange	UNI 3 holes
Pump shaft	UNI 8953 6x21x25
Maximum pressure	350 bar
Maximum rotation speed	2300 rpm
Thread press	G 3/4"
Volume range	3 - 40 cm³/rev
Suction connection	G 1"
