    PLUNGER PUMP 2PAK 50+30 ISO

    Welke lengte heeft u nodig?
    /
    U heeft 0 stuks nodig voor 0 euro incl. BTW

      Artikelcode:
      10800850307


    € 1.673,00
    Ask for quotationAdd to wish list
    Product Data Sheet
    On order
    Add to favorites
    • Easy online ordering and payment
    • Scroll down for more information
    • We only supply excellent brands
    • Ask for our shipment arrangements
    • Need more info? Ask us below

    Related products

    ADAPTOR 1/2" MALE - 1/2" MALE
    ADAPTOR 1/2" MALE - 1/2" MALE
    In stock
    € 3,00
    Product code: ABM08BM08
    GASKET 4 HOLE ISO
    GASKET 4 HOLE ISO
    In stock
    € 6,00
    Product code: 50700100086
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    In stock
    € 18,00
    Product code: 11400000900
    MULTI SEAL 1/2"
    MULTI SEAL 1/2"
    In stock
    € 2,00
    Product code: BSC08
    SUCTION FITTING 45° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
    SUCTION FITTING 45° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
    In stock
    € 52,00
    Product code: 15509000540
    • Product description and specifications
    • Documents
    • Ask a Question

    Barcode

    Product description

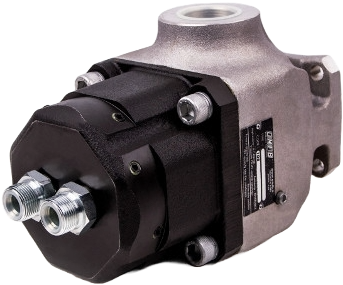

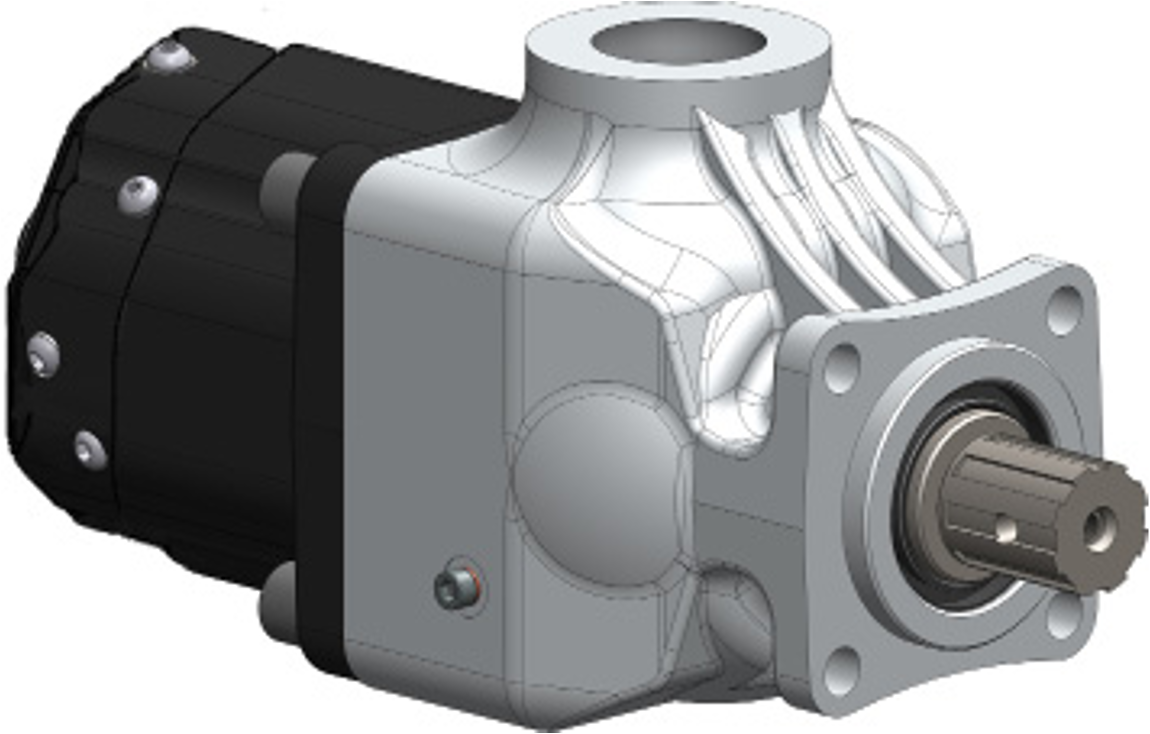

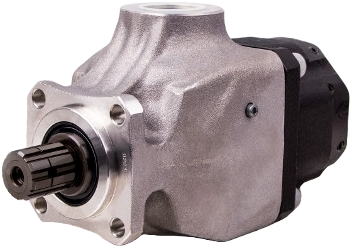

    This double plunger pump from OMFB's 2PAK series has 2 oil outputs, 1x 50 cc and 1x 35 cc.
    The pump is fitted with an ISO 7653 4-hole flange and a DIN 5462 8x32x36 shaft.
    With a bi-directional rotation direction, this pump offers versatility, making it perfect for various applications.
    With a maximum working pressure of 300 bar, the 2PAK pump guarantees powerful hydraulic pressure..

    We have many alternatives available for the suction fittings, you can also find a suitable one for the fitting to the nipple on the press among the BSP adapters.

    Documents

    Datasheet 2PAK Twin Delivery
    Mounting instruction DARK/2PAK ISO/UNI
    Exploded view 2PAK Twin Delivery

    Specifications

    BrandOMFB
    Product code10800850307
    Displacement50-30 cm³/rev
    Rotation directionBidirectional
    FlangeISO 7653 4 holes 80 mm
    Pump shaftDIN 5462 8x32x36
    Maximum pressure300 bar
    Maximum rotation speed1500 rpm
    Thread pressG1/2" + G1/2"
    Volume range3 - 40
    41 - 79 cm³/rev
    Suction connectionG 1-1/2"
