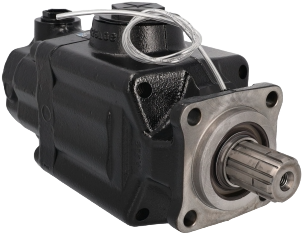

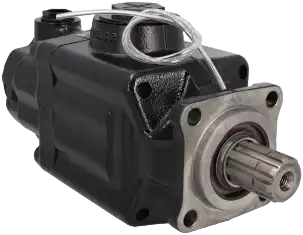

PISTON PUMP PA 2 X 75 CC

  Artikelcode:
  PA2-75-0516100
€ 3.278,00
Add to wish list
Product Data Sheet
On order
Add to favorites
  • Expertise you can rely on
  • Premium brands only
  • The right solution for every application
  • Fast delivery from stock
  • Worldwide shipping available

Related products

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
In stock
€ 19,00
Product code: 11400000900
SUCTION FITTING 90° 2" X 76 MM INCL HOSE CLAMP 86-91 MM
SUCTION FITTING 90° 2" X 76 MM INCL HOSE CLAMP 86-91 MM
In stock
€ 145,00
Product code: 15510000743
  • Product description and specifications
  • Documents

Product description

With their unique design, PA pumps offer a robust and durable solution to the high pressure needs of truck applications.
Combining the automatic dual direction of rotation, high operating pressure of 400 bar (up to 500 bar peak), and their relative; insensitivity to lower performance fluids, PA pumps are the solution for the most demanding environments.

This Hydro Leduc double pump from the PA series with order number PA2-75-0516100 has 2 oil flows of 75 cc each.
Check the other double pumps for larger or smaller oil volumes.
We also have many alternatives available for the suction nipples and BSP adapters.

Documents

Datasheet PA-PAC Series
Exploded View PA / PAC / PAD series
Installation and Startup Recommendations

Specifications

BrandHydro Leduc
Product codePA2-75-0516100
Displacement75-75 cm³/rev
Rotation directionBidirectional
FlangeISO 7653 4 holes 80 mm
Pump shaftDIN 5462 8x32x36
Maximum continuous pressure400 bar
Maximum rotation speed (with load on output)1350 rpm
Pressure connectionG 3/4"
Suction connectionG 2"
