PISTON PUMP 2PAK 35+35 ISO

  Artikelcode:
  10800835351
€ 1.653,00
Add to wish list
Product Data Sheet
Available from stock
Add to favorites
  • Expertise you can rely on
  • Premium brands only
  • The right solution for every application
  • Fast delivery from stock
  • Worldwide shipping available

Related products

ADAPTOR 1/2" MALE - 1/2" MALE
ADAPTOR 1/2" MALE - 1/2" MALE
In stock
€ 3,00
Product code: ABM08BM08
MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
In stock
€ 19,00
Product code: 11400000900
MULTI SEAL 1/2"
MULTI SEAL 1/2"
In stock
€ 2,00
Product code: BSC08
SUCTION FITTING 45° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
SUCTION FITTING 45° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
In stock
€ 55,00
Product code: 15509000540
  • Product description and specifications
  • Documents

Product description

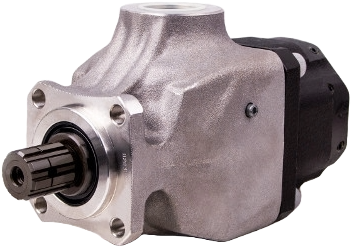

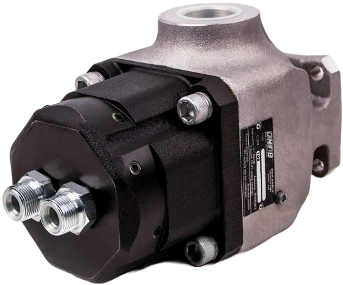

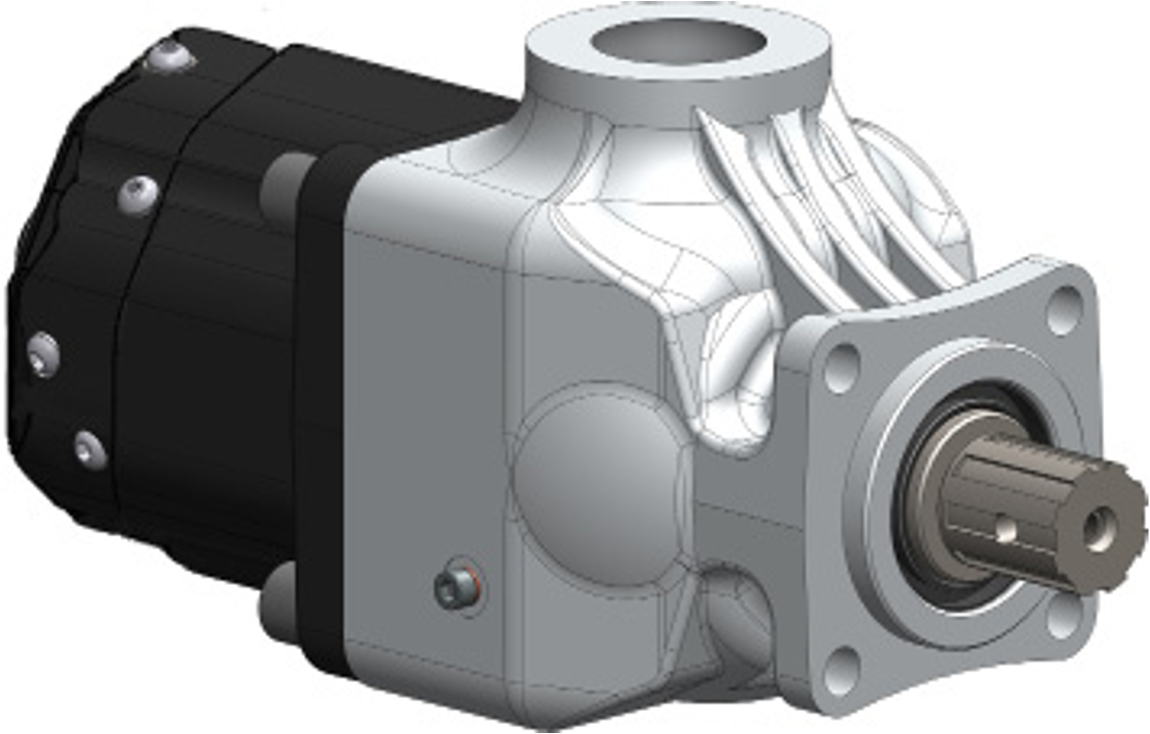

This double piston pump from OMFB's 2PAK series has 2 oil outputs of 35 cc each. The pump is fitted with an ISO 7653 4-hole flange and a DIN 5462 8x32x36 shaft. With a bi-directional rotation direction, this pump offers versatility, making it perfect for various applications. With a maximum working pressure of 300 bar, the 2PAK pump guarantees powerful hydraulic pressure.

We have many alternatives available for the suction fittings, you can also find a suitable one for the fitting to the nipple on the press among the BSP adapters.

Documents

Datasheet 2PAK Twin Delivery
Exploded View 2PAK Twin Delivery
Mounting Instructions DARK - 2PAK

Specifications

BrandOMFB
Product code10800835351
Displacement35-35 cm³/rev
Rotation directionBidirectional
FlangeISO 7653 4 holes 80 mm
Pump shaftDIN 5462 8x32x36
Maximum continuous pressure300 bar
Maximum rotation speed (with load on output)1500 rpm
Pressure connectionG 1/2" + G 1/2"
Suction connectionG 1-1/2"
