HYDRAULIC TANK STEEL 100 LTR 578×639×376 SLT

Artikelcode: H1GLBT03820
€ 1.025,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Expertise you can rely on
Premium brands only
The right solution for every application
Fast delivery from stock
Worldwide shipping available

Related products

BALL VALVE ADJUSTABLE 2" M/F

In stock

€ 126,00

Product code: 12600600507

RETURN FILTER MPF180 L1 1" 1/4+3/4" 10 µm 250 L/MIN MICROFIBER

In stock

€ 301,00

Product code: MPFC18210A0010DA17FG11421TSNP01NN

SUCTION FITTING 90° 2" X 63 MM INCL HOSE CLAMP 74-79 MM

In stock

€ 145,00

Product code: 15510000716

Product description and specifications
Documents
Accessories

Product description

OMFB SLT steel hydraulic tank with a capacity of 100 litres. The tank has a 195 mm flange for the return filter as standard. Two 2" female thread suction connections, one at the rear of the tank and one at the bottom. An additional 3/4" return connection on top and a high model air breather cap with anti-splash function. The tank also comes with a gauge glass (254mm) and a tank support kit for mounting on the chassis.

Return filter can be ordered separately.

Documents

Datasheet SLT BT (570×630)

Mounting Instructions Tank Support Set

Specifications

	Brand	OMFB
	Product code	H1GLBT03820
	Tank capacity	100 litre
	Work volume hydraulic	87 litre
	Material	Steel
	Mounting plate tipping valve	None
	Support set included	Yes
	Filter opening	Yes
	Pitch circle diameter filter	175 mm
	Level indicator/Spy eye	Level indicator 254 mm

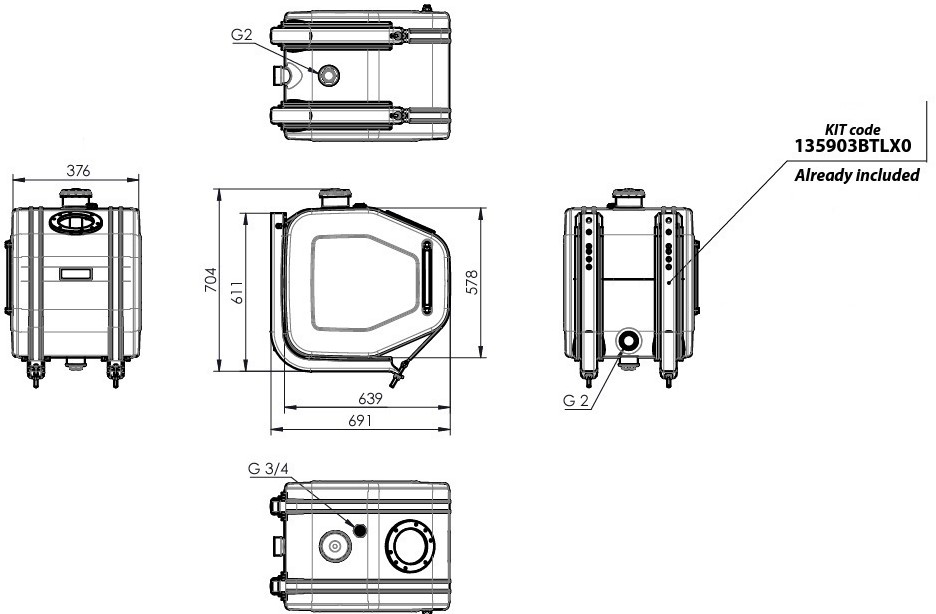

Height Height tank picture	Height	578 mm
Width Width tank picture	Width	639 mm
Length Length tank picture	Length	376 mm
	Suction connection	G 2"
	Return connection	G 3/4"
	Number of return connections	1
	Return position	Top
