HYDRAULIC TANK ALUMINIUM 200 LTR 640×710×500 + 2" SUCTION ADAPTOR

  Artikelcode:
  H2ALBR0504A
€ 1.017,00
Ask for quotationAdd to wish list
Product Data Sheet
Soon on stock again
Add to favorites
  • Easy online ordering and payment
  • Scroll down for more information
  • We only supply excellent brands
  • Ask for our shipment arrangements
  • Need more info? Ask us below

Related products

MOUNTING KIT 640×710 REAR CAB KIT (FAM. BR)
MOUNTING KIT 640×710 REAR CAB KIT (FAM. BR)
In stock
€ 279,00
Product code: 135903BRRX1
TANK SUPPORT SET 640×710 (FAM. BR)
TANK SUPPORT SET 640×710 (FAM. BR)
In stock
€ 279,00
Product code: 135903BRLX4
BALL VALVE ADJUSTABLE 2" M/F
BALL VALVE ADJUSTABLE 2" M/F
In stock
€ 126,00
Product code: 12600600507
RETURN FILTER IMMERSED G 1" 60 µm 200 L/M 360º ROTATABLE
RETURN FILTER IMMERSED G 1" 60 µm 200 L/M 360º ROTATABLE
In stock
€ 116,00
Product code: 11800125519
SUCTION FITTING 90° 2" X 63 MM INCL HOSE CLAMP 74-79 MM
SUCTION FITTING 90° 2" X 63 MM INCL HOSE CLAMP 74-79 MM
In stock
€ 145,00
Product code: 15510000716
  • Product description and specifications
  • Documents
  • Accessories

Product description

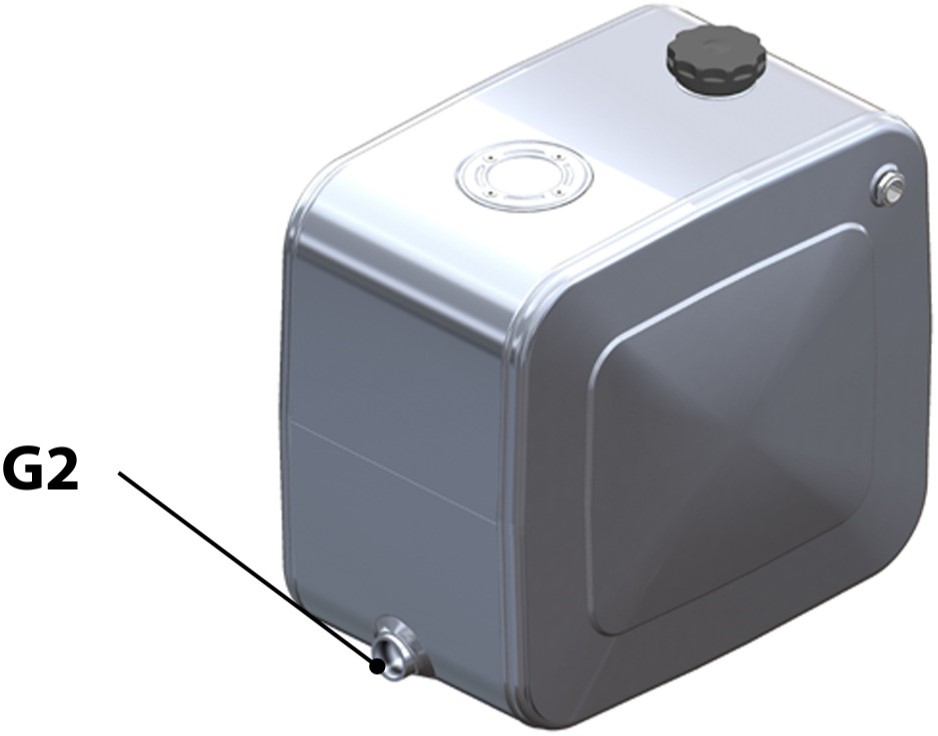

Aluminium hydraulic tank from OMFB with a capacity of 200 litres. The tank is equipped as standard with a 175 mm flange for the return filter, a 2" female thread suction connection and a low model filler cap with vent and anti-splash function. The tank is also equipped with a 1" level eye.

Please note, tank supports are not supplied as standard! Tank support set can be ordered separately.

Documents

Datasheet Diamond BR (640×710)
Mounting Instructions Tank Support Set

Specifications

BrandOMFB
Product codeH2ALBR0504A
Tank capacity200 litre
Work volume hydraulic175 litre
MaterialAluminium
Mounting plate tipping valveNone
Support set includedNo
Filter openingYes
Pitch circle diameter filter175 mm

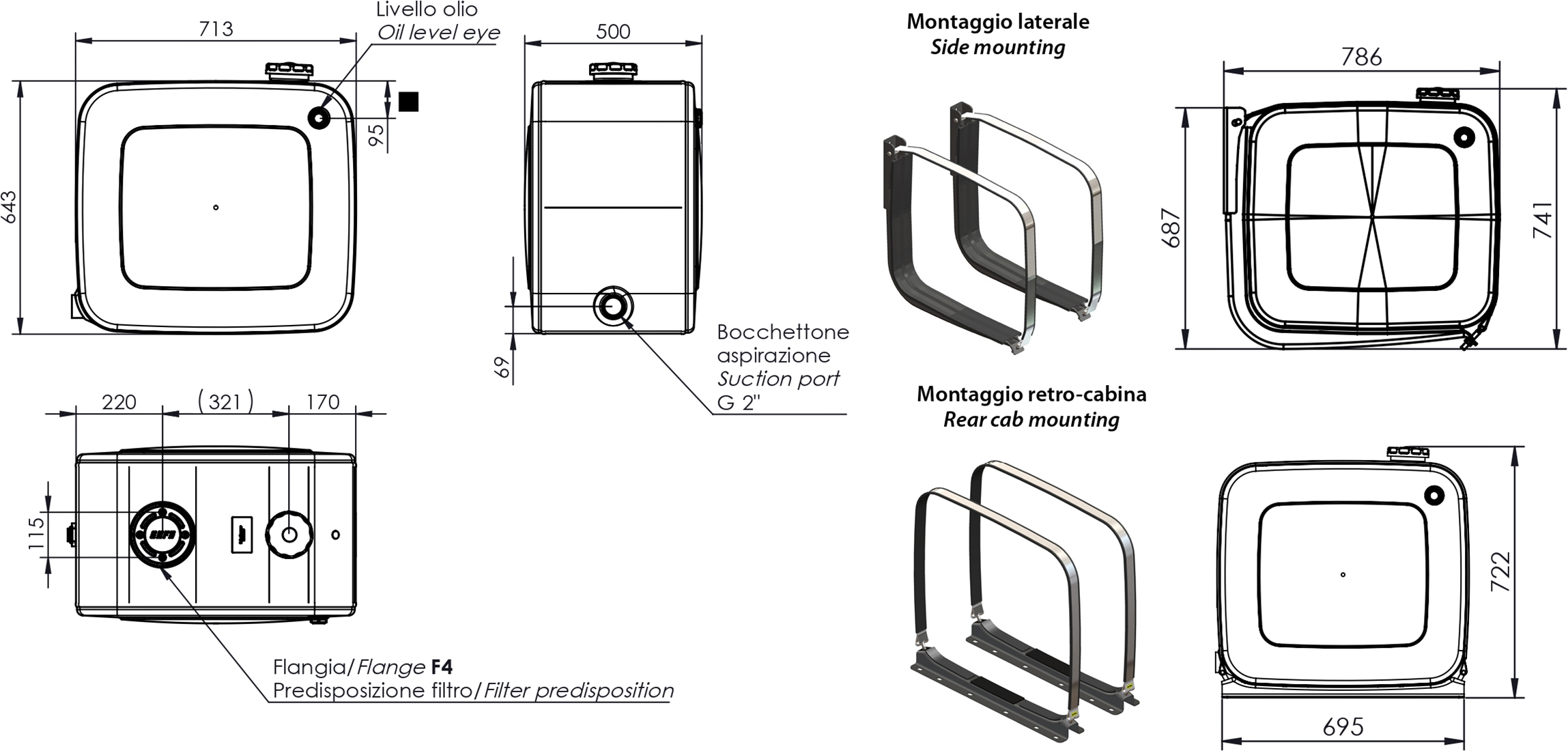

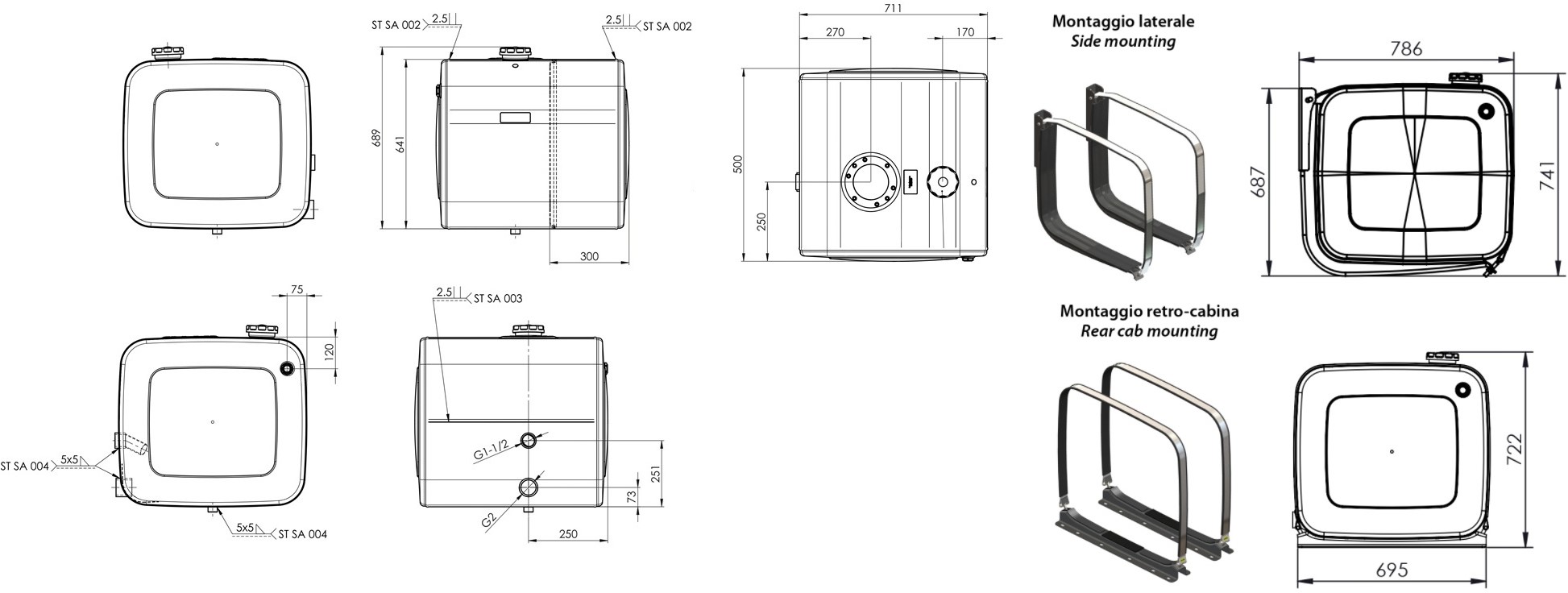

Height

Height tank picture Height tank picture

Height643 mm
Width

Width tank picture Width tank picture

Width713 mm
Length

Length tank picture Length tank picture

Length500 mm

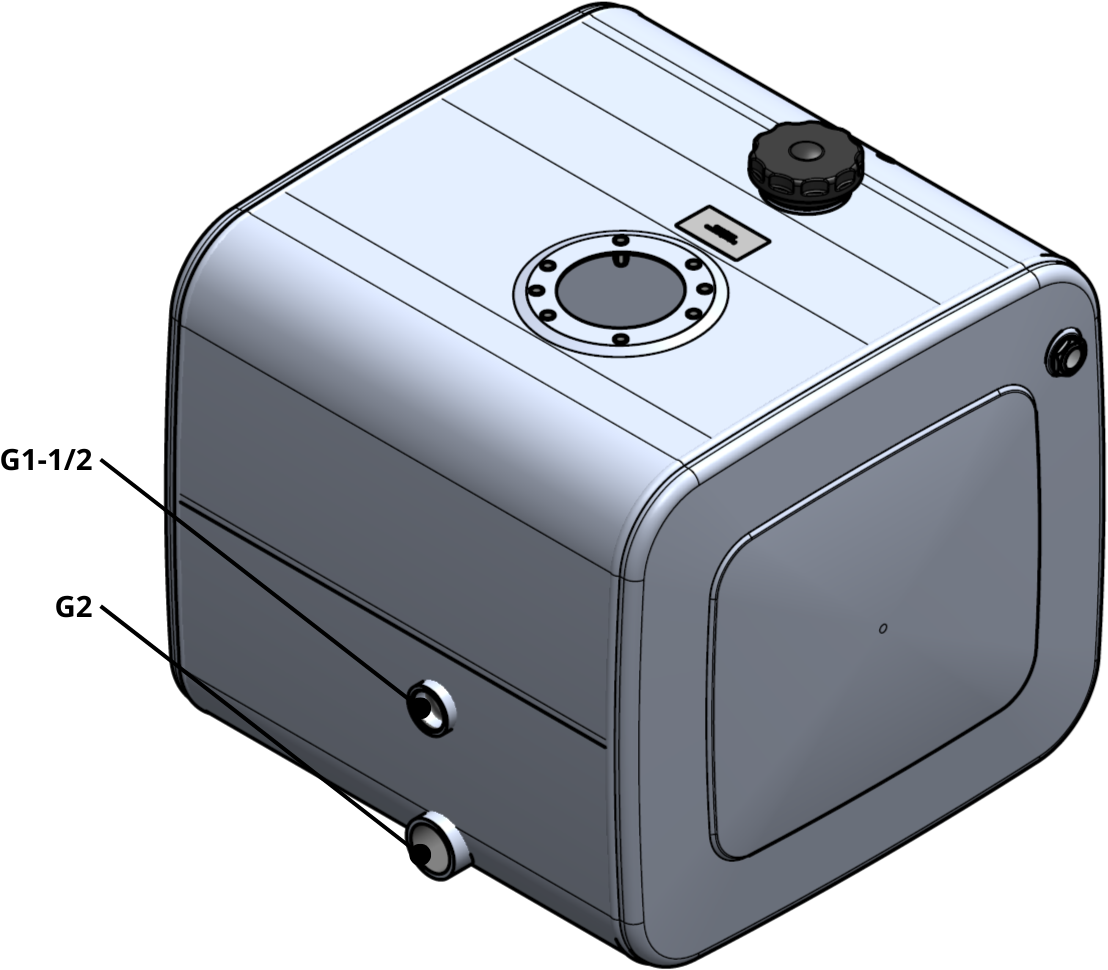

Suction connectionG 2"
Return connectionG1-1/2"
Number of return connections1
Return positionRear

Accessories

COVER PLATE RETURN FILTER 175 MM
COVER PLATE RETURN FILTER 175 MM
In stock
€ 44,00
Product code: 13599020165
FILLER CAP LOW HYDRAULIC TANK OMFB + ANTI SPLASH
FILLER CAP LOW HYDRAULIC TANK OMFB + ANTI SPLASH
In stock
€ 38,00
Product code: 11801301200
SPY EYE LEVEL GAUGE 1" ALUMINIUM
SPY EYE LEVEL GAUGE 1" ALUMINIUM
In stock
€ 17,00
Product code: LCPG33MCAP01
-
