HYDRAULIC TANK ALUMINIUM 150 LTR 700×700×350

  Artikelcode:
  H1ANBI03540
€ 878,00
Ask for quotationAdd to wish list
Product Data Sheet
Available from stock
Add to favorites
  • Expertise you can rely on
  • Premium brands only
  • The right solution for every application
  • Fast delivery from stock
  • Worldwide shipping available

Related products

TANK SUPPORT SET 700×700 - 150 LTR (FAM. BI)
TANK SUPPORT SET 700×700 - 150 LTR (FAM. BI)
In stock
€ 279,00
Product code: 135903BILX3
TANK SUPPORT SET 700×700 REAR CAB KIT (FAM. BI)
TANK SUPPORT SET 700×700 REAR CAB KIT (FAM. BI)
In stock
€ 279,00
Product code: 135903BIRX1
BALL VALVE ADJUSTABLE 1" 1/2 M/F
BALL VALVE ADJUSTABLE 1" 1/2 M/F
In stock
€ 71,00
Product code: 12600600409
RETURN FILTER IMMERSED G 1" 60 µm 200 L/M 360º ROTATABLE
RETURN FILTER IMMERSED G 1" 60 µm 200 L/M 360º ROTATABLE
In stock
€ 116,00
Product code: 11800125519
SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
In stock
€ 58,00
Product code: 15510000592
  • Product description and specifications
  • Documents
  • Accessories

Product description

Aluminium hydraulic tank from OMFB with a capacity of 150 litres. The tank is equipped as standard with a 115 mm flange for the return filter, a 1" 1/2 female thread suction connection, a 1" return connection and a low model filler cap with vent and anti-splash function. The tank is also equipped with a 1" level eye.

Please note, tank supports are not supplied as standard! Tank support set can be ordered separately.

Documents

Datasheet Jolly/M'Floor BI (700×700)
Mounting Instructions Tank Support Set

Specifications

BrandOMFB
Product codeH1ANBI03540
Tank capacity150 litre
Work volume hydraulic127 litre
MaterialAluminium
Mounting plate tipping valveNone
Support set includedNo
Filter openingYes
Pitch circle diameter filter115 mm

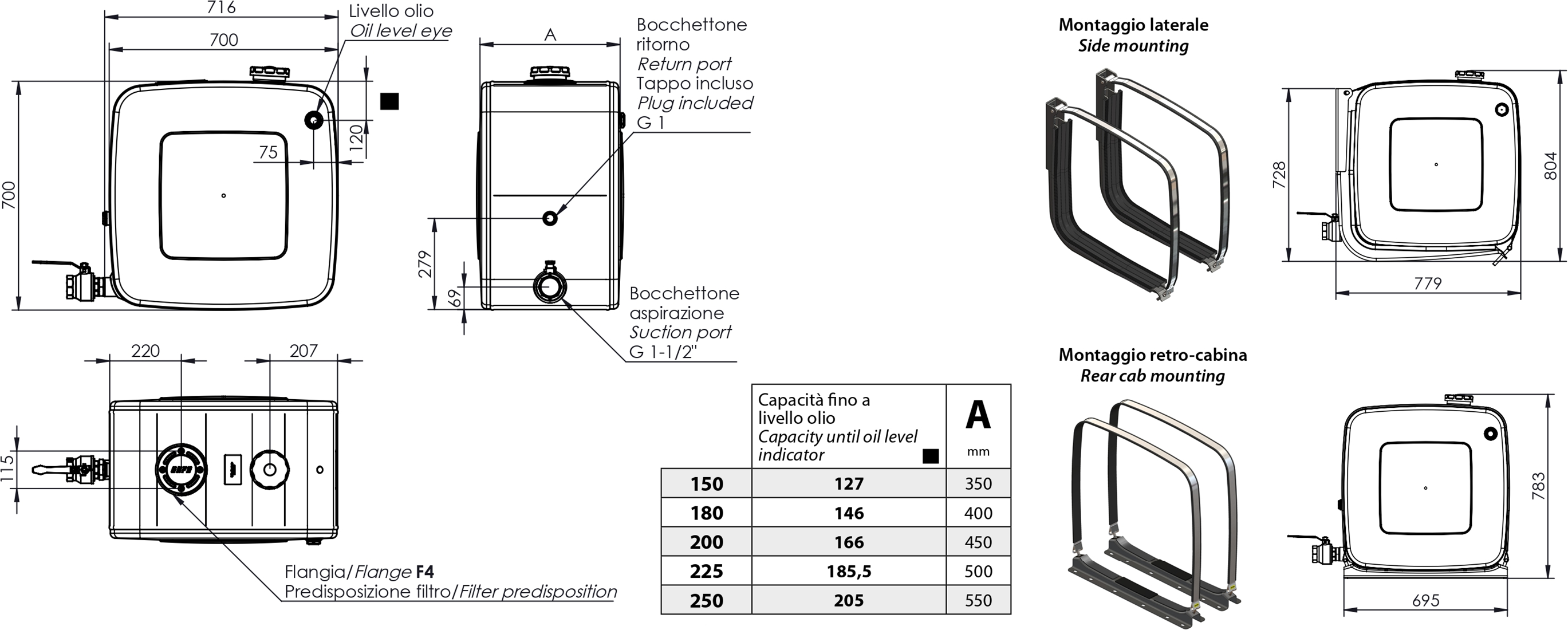

Height

Height tank picture Height tank picture

Height700 mm
Width

Width tank picture Width tank picture

Width700 mm
Length

Length tank picture Length tank picture

Length350 mm
Suction connectionG 1-1/2"
Return connectionG1"
Number of return connections1
Return positionRear
