HYDRAULIC TANK ALUMINIUM 150 LTR 625×680×400

Artikelcode: H2ALBQ04040
€ 878,00 Processing... Add to wish list
Product Data Sheet
Available from stock

Add to favorites

Expertise you can rely on
Premium brands only
The right solution for every application
Fast delivery from stock
Worldwide shipping available

Related products

TANK SUPPORT SET 625×680 (FAM. BQ)

In stock

€ 279,00

Product code: 135903BQLXB

BALL VALVE ADJUSTABLE 1" 1/2 M/F

In stock

€ 71,00

Product code: 12600600409

RETURN FILTER IMMERSED G 1" 60 µm 200 L/M 360º ROTATABLE

In stock

€ 116,00

Product code: 11800125519

SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM

In stock

€ 58,00

Product code: 15510000592

Product description and specifications
Documents
Accessories

Product description

Aluminium hydraulic tank from OMFB with a capacity of 150 litres. The tank is equipped as standard with a 115 mm flange for the return filter, a 1" 1/2 female thread suction connection, three additional 1" return connections and a low model filler cap with vent and anti-splash function. The tank is also equipped with a 1" level eye.

Please note, tank supports are not supplied as standard! Tank support set can be ordered separately.

Documents

Datasheet Type Q BQ (625×680)

Mounting Instructions Tank Support Set

Specifications

	Brand	OMFB
	Product code	H2ALBQ04040
	Tank capacity	150 litre
	Work volume hydraulic	122 litre
	Material	Aluminium
	Mounting plate tipping valve	None
	Support set included	No
	Filter opening	Yes
	Pitch circle diameter filter	115 mm

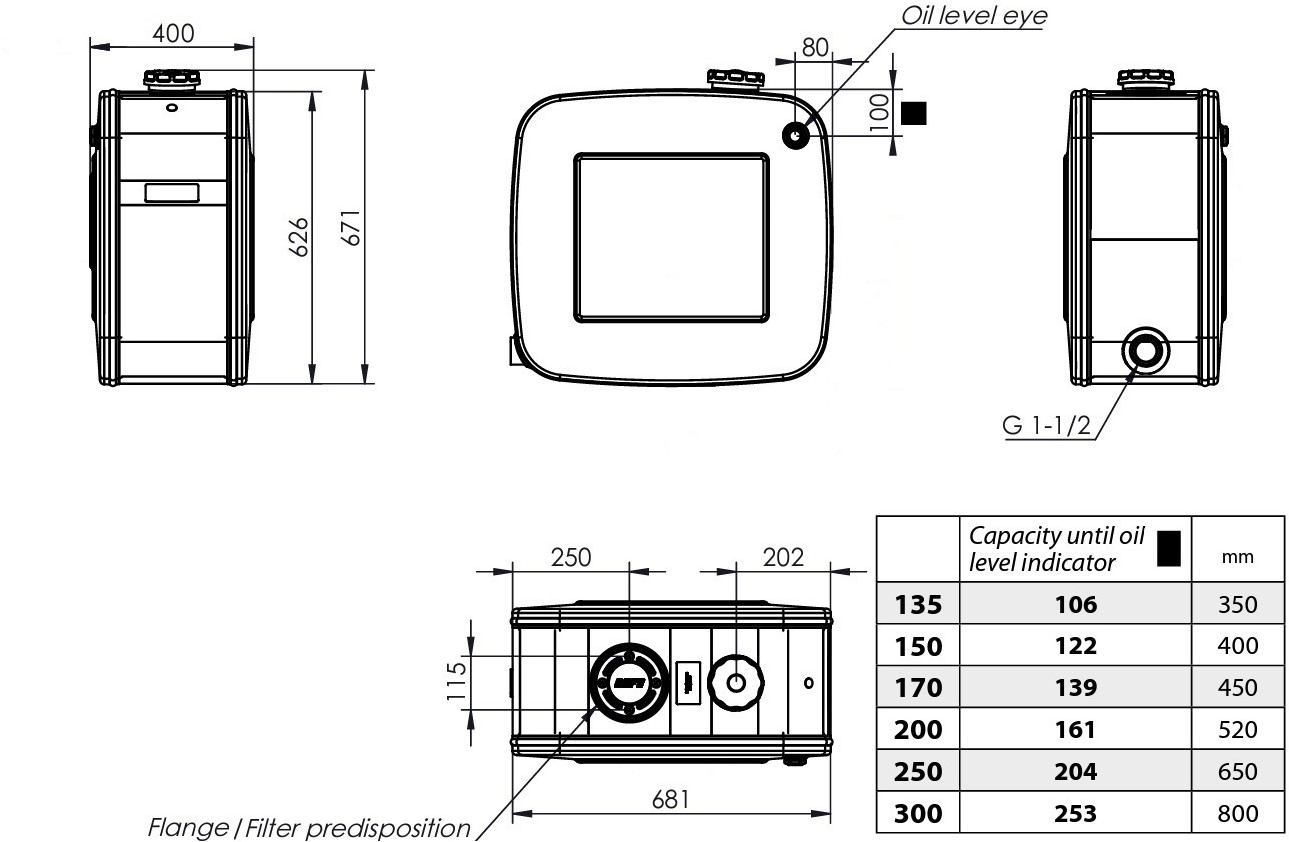

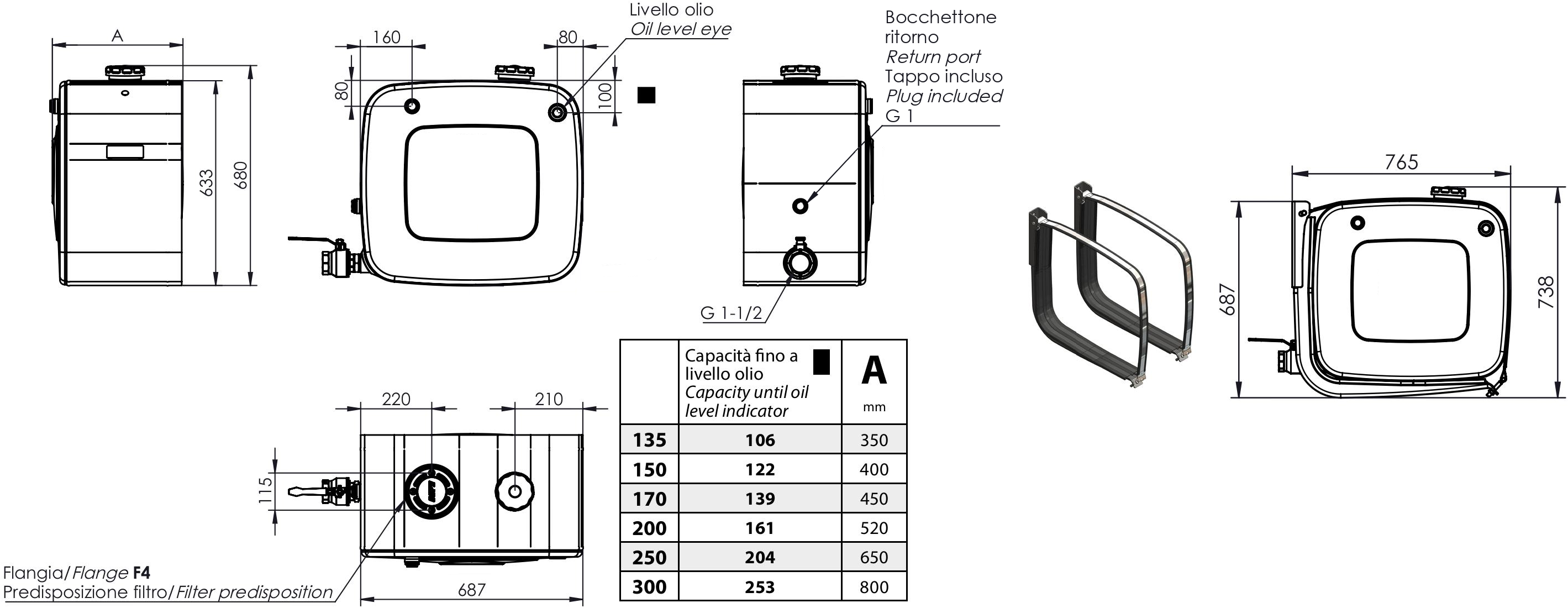

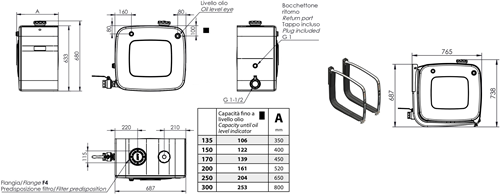

Height Height tank picture	Height	625 mm
Width Width tank picture	Width	680 mm
Length Length tank picture	Length	400 mm
	Suction connection	G 1-1/2"
	Return connection	G1"
	Number of return connections	3
	Return position	Rear Left Right
