HAND PUMP PMS 45 CM³ + SAFETY OFFSHORE

  Artikelcode:
  10602301454
€ 206,00
Add to wish list
Product Data Sheet
On order
Add to favorites
  • Expertise you can rely on
  • Premium brands only
  • The right solution for every application
  • Fast delivery from stock
  • Worldwide shipping available

Related products

LEVER FOR HAND PUMP PMS/PMI 35X15 OFFSHORE
LEVER FOR HAND PUMP PMS/PMI 35X15 OFFSHORE
On order
€ 19,00
Product code: 10600090785
MOUNTING KIT HAND PUMP PMI/PMS
MOUNTING KIT HAND PUMP PMI/PMS
In stock
€ 6,00
Product code: 10696000700
MOUNTING PLATE FOR PMS/PMI
MOUNTING PLATE FOR PMS/PMI
In stock
€ 26,00
Product code: 10600000032
  • Product description and specifications
  • Documents
  • Accessories

Product description

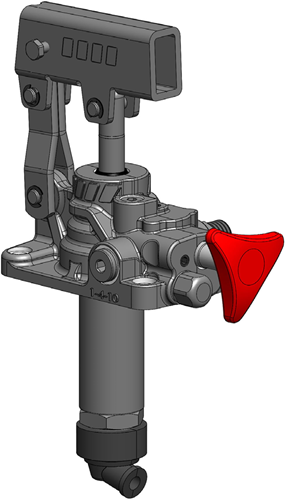

Hand pump PMS 45 + SAFETY OFFSHORE from OMFB with a displacement of 45 cm³.
Double-acting operation, this allows the pump to deliver oil with both the upstroke and downstroke.
The pump can be fitted also onto a tank and is equipped with a valve for single-acting cylinders and built-in pressure relief valve.
The body is in cast-iron with phosphate treatment and the stem is in nickeled steel.

Documents

Datasheet PMS+VS 12-25-45 OFFSHORE

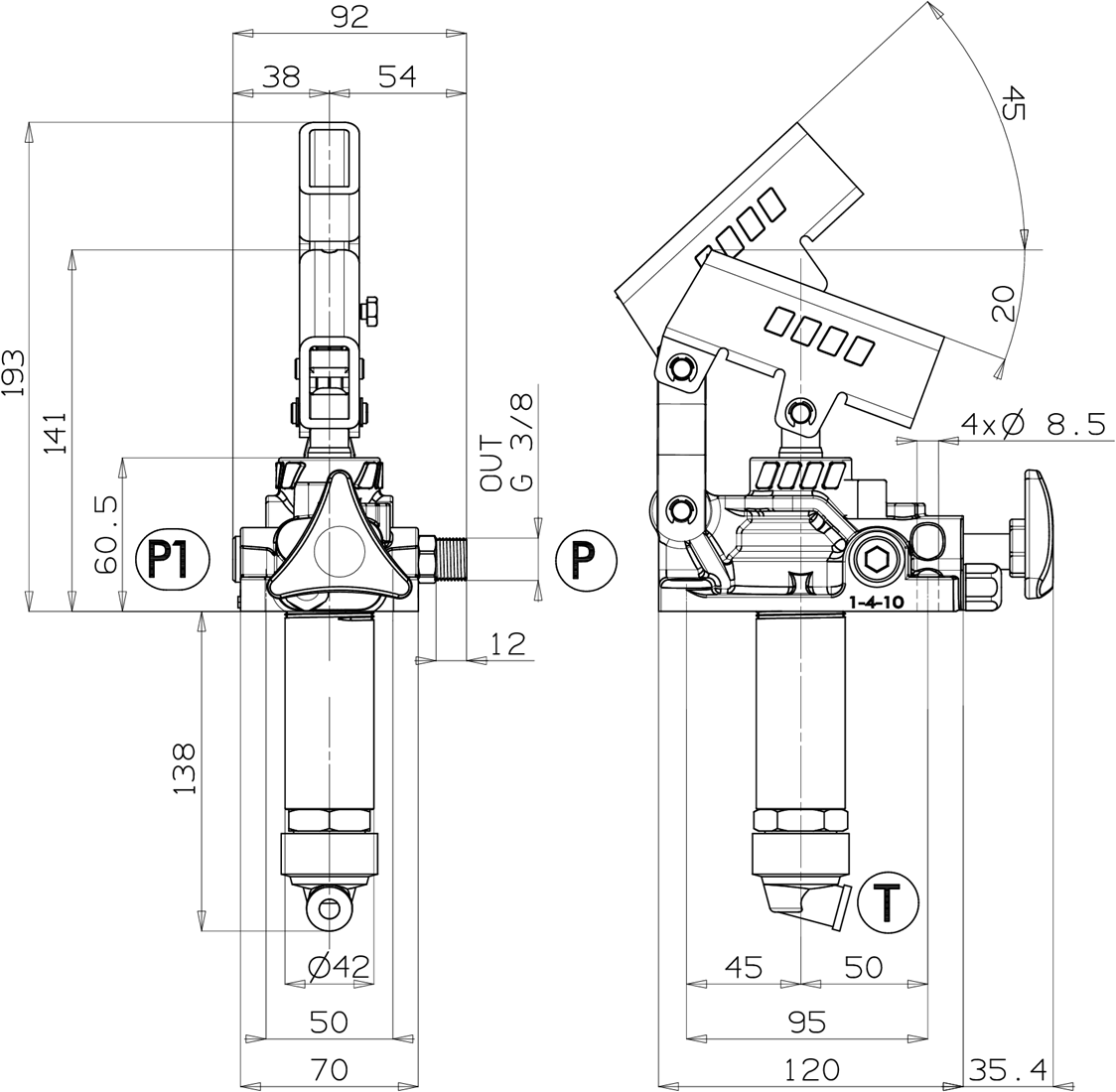

Exploded View PMS+VS 12-25-45 OFFSHORE
User Guide For Handpumps

Specifications

BrandOMFB
Product code10602301454
TypePMS
Displacement45 cm³/rev
Pressure relief valveYes
Maximum continuous pressure270 bar
