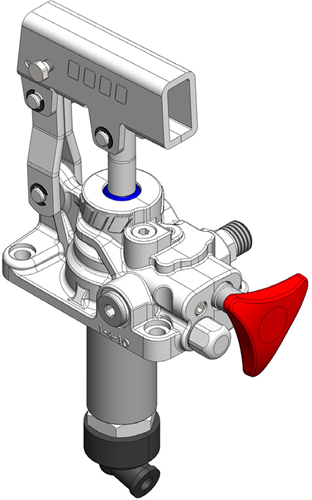

HAND PUMP PMS 12 CM³ + SAFETY

  Artikelcode:
  10601900013
€ 173,00
Add to wish list
Product Data Sheet
Available from stock
Add to favorites
  • Expertise you can rely on
  • Premium brands only
  • The right solution for every application
  • Fast delivery from stock
  • Worldwide shipping available

Related products

LEVER FOR HAND PUMP PMS/PMI 35X15
LEVER FOR HAND PUMP PMS/PMI 35X15
In stock
€ 13,00
Product code: 10600000078
MOUNTING KIT HAND PUMP PMI/PMS
MOUNTING KIT HAND PUMP PMI/PMS
In stock
€ 6,00
Product code: 10696000700
MOUNTING PLATE FOR PMS/PMI
MOUNTING PLATE FOR PMS/PMI
In stock
€ 26,00
Product code: 10600000032
  • Product description and specifications
  • Documents
  • Accessories

Product description

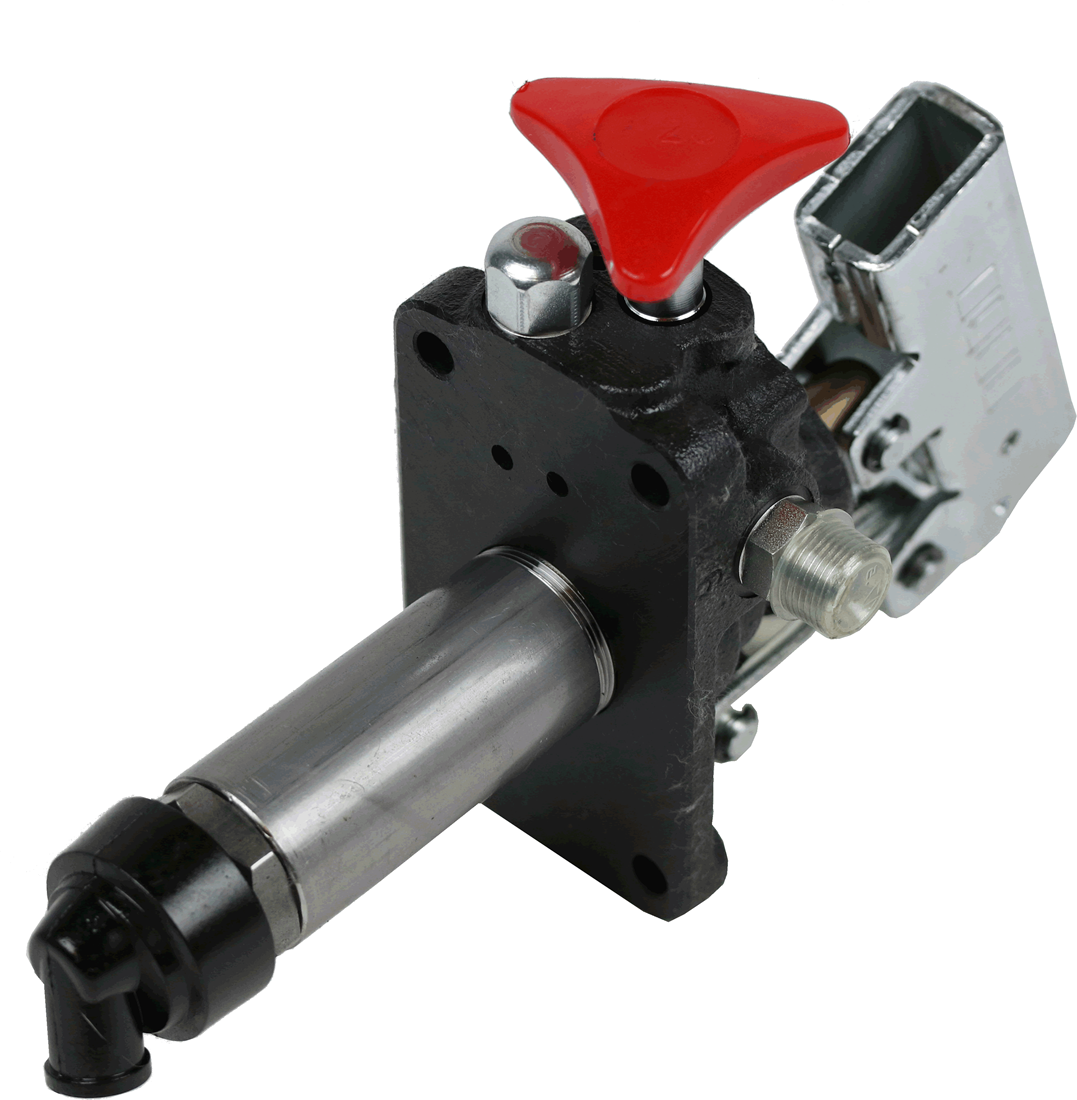

Hand pump PMS 12 + SAFETY from OMFB with a displacement of 12 cm³.
Double-acting operation, this allows the pump to deliver oil with both the upstroke and downstroke.
The pump can be fitted also onto a tank and is equipped with a valve for single-acting cylinders and built-in pressure relief valve.
The body is in cast-iron with phosphate treatment and the stem is in nickeled steel.

Documents

Datasheet PMS+VS 12-25-45
Exploded View PMS+VS 12-25-45
User Guide For Handpumps

Specifications

BrandOMFB
Product code10601900013
TypePMS
Displacement12 cm³/rev
Pressure relief valveYes
Maximum continuous pressure350 bar
