HAND PUMP PMI 12 CM³ + SAFETY OFFSHORE

  Artikelcode:
  10602201124


€ 246,00
Add to wish list
Product Data Sheet
On order
Add to favorites
  • Expertise you can rely on
  • Premium brands only
  • The right solution for every application
  • Fast delivery from stock
  • Worldwide shipping available

Related products

LEVER FOR HAND PUMP PMS/PMI 35X15 OFFSHORE
€ 19,00
Product code: 10600090785
MOUNTING KIT HAND PUMP PMI/PMS
€ 6,00
Product code: 10696000700
MOUNTING PLATE FOR PMS/PMI
€ 26,00
Product code: 10600000032
  • Product description and specifications
  • Documents
  • Accessories

Product description

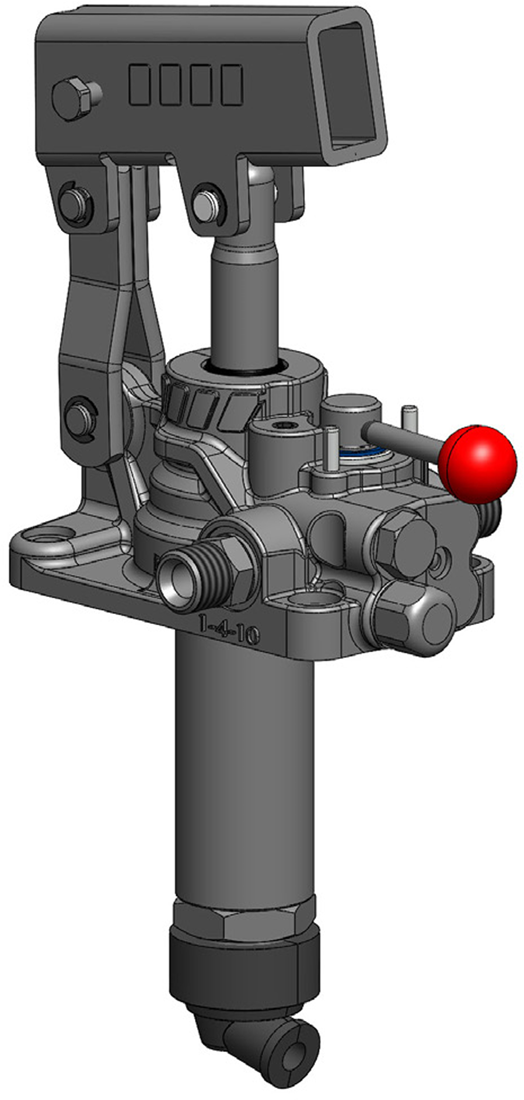

Hand pump PMI 12 + SAFETY OFFSHORE from OMFB with a displacement of 12 cm³.
Double-acting operation, this allows the pump to deliver oil with both the upstroke and downstroke.
The pump can be fitted also onto a tank and is equipped with a valve for double-acting cylinders and built-in pressure relief valve.
A special treatment gives it high resistance to corrosion (salt spray test = 700 hours).

Documents

Specifications

BrandOMFB
Product code10602201124
TypePMI
Displacement12 cm³/rev
Pressure relief valveYes
Maximum continuous pressure300 bar

Accessories

PISTON ASSEMBLY PMI/PMS 12
€ 14,00
Product code: 50001200032
