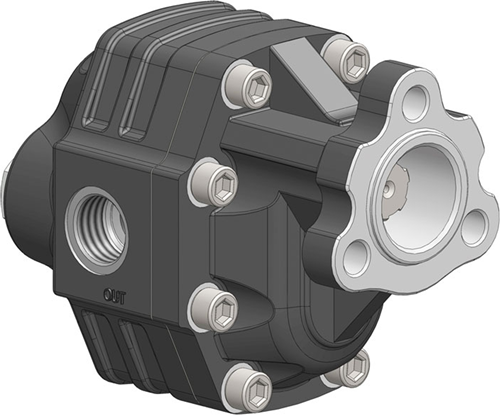

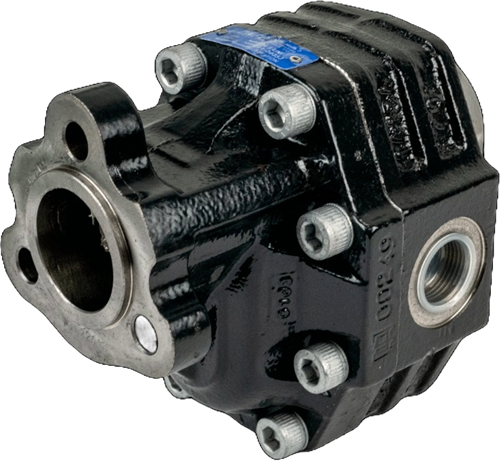

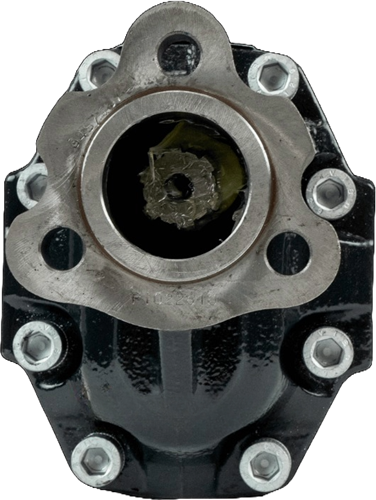

GEAR PUMP NPH 43 SX UNI

  Artikelcode:
  10501100442
€ 613,00
Add to wish list
Product Data Sheet
Available from stock
Add to favorites
  • Expertise you can rely on
  • Premium brands only
  • The right solution for every application
  • Fast delivery from stock
  • Worldwide shipping available

Related products

GASKET 3 HOLE UNI
GASKET 3 HOLE UNI
In stock
€ 5,00
Product code: 50700000014
MOUNTING KIT UNI COMPLETE
MOUNTING KIT UNI COMPLETE
In stock
€ 20,00
Product code: 11400010604
SUCTION FITTING 90° 3/4" X 25 MM INCL HOSE CLAMP 32-35 MM
SUCTION FITTING 90° 3/4" X 25 MM INCL HOSE CLAMP 32-35 MM
In stock
€ 38,00
Product code: 15510000181
  • Product description and specifications
  • Documents
  • Accessories

Specifications

BrandOMFB
Product code10501100442
Weight10,717 kg
Displacement43,12 cm³/rev
Rotation directionCounterclockwise
FlangeUNI 3 holes
Pump shaftUNI 8953 6x21x25
Maximum continuous pressure270 bar
Maximum rotation speed (with load on output)2000 rpm
Pressure connectionG 3/4"
Suction connectionG 3/4"
