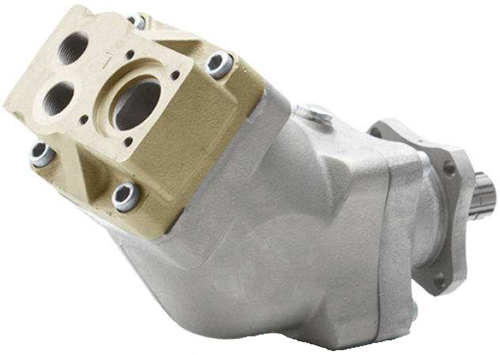

    DOUBLE PUMP SUNFAB SCPD-76/76 DIN RIGHT

    Welke lengte heeft u nodig?
    /
    U heeft 0 stuks nodig voor 0 euro incl. BTW

      Artikelcode:
      SF23334


    € 4.100,00
    Ask for quotationAdd to wish list
    Product Data Sheet
    Soon on stock again
    Add to favorites
    • Easy online ordering and payment
    • Scroll down for more information
    • We only supply excellent brands
    • Ask for our shipment arrangements
    • Need more info? Ask us below

    Related products

    ADAPTER 3/4" MALE - 1" MALE
    ADAPTER 3/4" MALE - 1" MALE
    In stock
    € 8,00
    Product code: ABM12BM16
    CONNECTION FOR SUCTION FITTING SUNFAB SC84-SC108 SCT130 1 1/4"
    CONNECTION FOR SUCTION FITTING SUNFAB SC84-SC108 SCT130 1 1/4"
    In stock
    € 84,00
    Product code: SF50404
    GASKET 4 HOLE ISO
    GASKET 4 HOLE ISO
    In stock
    € 6,00
    Product code: 50700100086
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    In stock
    € 18,00
    Product code: 11400000900
    MULTI SEAL 3/4"
    MULTI SEAL 3/4"
    In stock
    € 2,00
    Product code: BSC12
    SUCTION FITTING 45° SUNFAB SC84-SC108 SCT130 45 MM (52-55)
    SUCTION FITTING 45° SUNFAB SC84-SC108 SCT130 45 MM (52-55)
    In stock
    € 94,00
    Product code: SF20424
    SUNFAB SUCTION CONNECTING KIT SC 084-108 130 SL SVH
    SUNFAB SUCTION CONNECTING KIT SC 084-108 130 SL SVH
    In stock
    € 28,00
    Product code: SF50225
    • Product description and specifications
    • Documents
    • Ask a Question

    Barcode

    Product description

    The SCPD 76/76 DIN is a dual flow pump with two separate flows of equal sizes with a maximum flow rate of 128 + 128 = 256 litres/min and supports a maximum working pressure of 350 bar.
    It can effectively be directly mounted on gear boxes equipped with engageable and disengageable power takeoffs.
    It is a modern, compact pump, which meets the market's high demands on flow performance, pressure, efficiency and small installation dimensions.

    Other advantages:
    • Large displacement gives the possibility of low  engine speeds and low noise levels.
    • Long life due to high demands on material  selection, such as bearings, seals, etc.
    • Orings on all contact surfaces as well as double  shaft seals eliminate oil leakage from the pump  and power takeoff.
    • Highest displacementtosizeratio on  the market.

    Documents

    Datasheet SCPD 76/76 DIN
    Mounting instruction SCPD 76/76 DIN
    Exploded view SCPD 76/76 DIN

    Specifications

    BrandSunfab
    Product codeSF23334
    Displacement75-75 cm³/rev
    Rotation directionClockwise
    FlangeISO 7653 4 holes 80 mm
    Pump shaftDIN 5462 8x32x36
    Maximum pressure350 bar
    Maximum rotation speed1500 rpm
    Thread pressG 3/4" + G 3/4"
    Volume range41 - 79 cm³/rev
    Suction connectionFlange with O-ring seal
