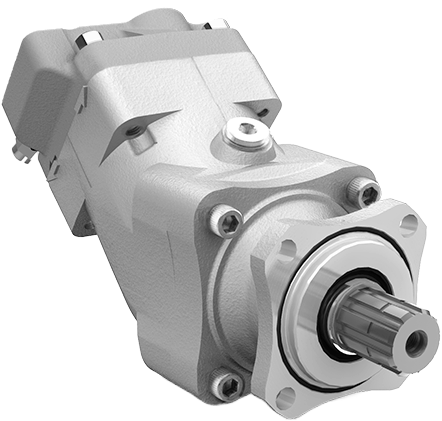

    DOUBLE PUMP SUNFAB SCPD-56/26 DIN RIGHT

    Welke lengte heeft u nodig?
    /
    U heeft 0 stuks nodig voor 0 euro incl. BTW

      Artikelcode:
      SF20535


    € 2.830,00
    Ask for quotationAdd to wish list
    Product Data Sheet
    On order
    Add to favorites
    • Easy online ordering and payment
    • Scroll down for more information
    • We only supply excellent brands
    • Ask for our shipment arrangements
    • Need more info? Ask us below

    Related products

    ADAPTER 3/4" MALE - 1" MALE
    ADAPTER 3/4" MALE - 1" MALE
    In stock
    € 8,00
    Product code: ABM12BM16
    CONNECTION FOR SUCTION FITTING SUNFAB SC84-SC108 SCT130 1 1/4"
    CONNECTION FOR SUCTION FITTING SUNFAB SC84-SC108 SCT130 1 1/4"
    In stock
    € 84,00
    Product code: SF50404
    GASKET 4 HOLE ISO
    GASKET 4 HOLE ISO
    In stock
    € 6,00
    Product code: 50700100086
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    In stock
    € 18,00
    Product code: 11400000900
    MULTI SEAL 3/4"
    MULTI SEAL 3/4"
    In stock
    € 2,00
    Product code: BSC12
    SUCTION FITTING 45° SUNFAB SC84-SC108 SCT130 45 MM (52-55)
    SUCTION FITTING 45° SUNFAB SC84-SC108 SCT130 45 MM (52-55)
    In stock
    € 94,00
    Product code: SF20424
    SUNFAB SUCTION CONNECTING KIT SC 084-108 130 SL SVH
    SUNFAB SUCTION CONNECTING KIT SC 084-108 130 SL SVH
    In stock
    € 28,00
    Product code: SF50225
    • Product description and specifications
    • Documents
    • Ask a Question

    Barcode

    Product description

    SCPD 56/26 DIN provides 56.0 and 26.0 cm³ /rev. and supports a maximum working pressure of 400 bar. It can effectively be directly mounted on gear boxes equipped with engageable and disengageable power take­offs.

    Other advantages:
    • High self­priming speed.
    • Constant low noise level.
    • Long life due to high demands on material selection, such as bearings, seals, etc.
    • O­-rings on all contact surfaces as well as double shaft seals.

    Take a look at the other Sunfab double pumps if you are looking for a larger or smaller oil volume or a pump with a Savtec. We also have many alternatives available for the suction fittings or BSP adapters.


    Documents

    Datasheet SCPD 56/26 DIN
    Mounting insctruction SCPD 56/26 DIN
    Exploded view SCPD 56/26 DIN

    Specifications

    BrandSunfab
    Product codeSF20535
    Displacement56-26 cm³/rev
    Rotation directionClockwise
    FlangeISO 7653 4 holes 80 mm
    Pump shaftDIN 5462 8x32x36
    Maximum pressure400 bar
    Maximum rotation speed1850 rpm
    Thread pressG 3/4" + G 3/4"
    Volume range3 - 40
    41 - 79 cm³/rev
    Suction connectionFlange with O-ring seal
