Product description

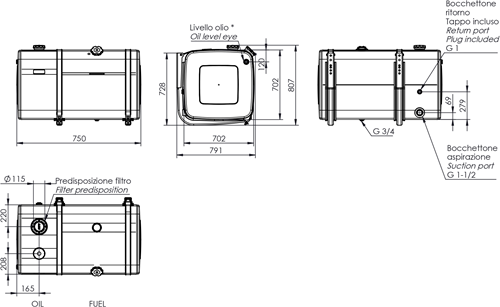

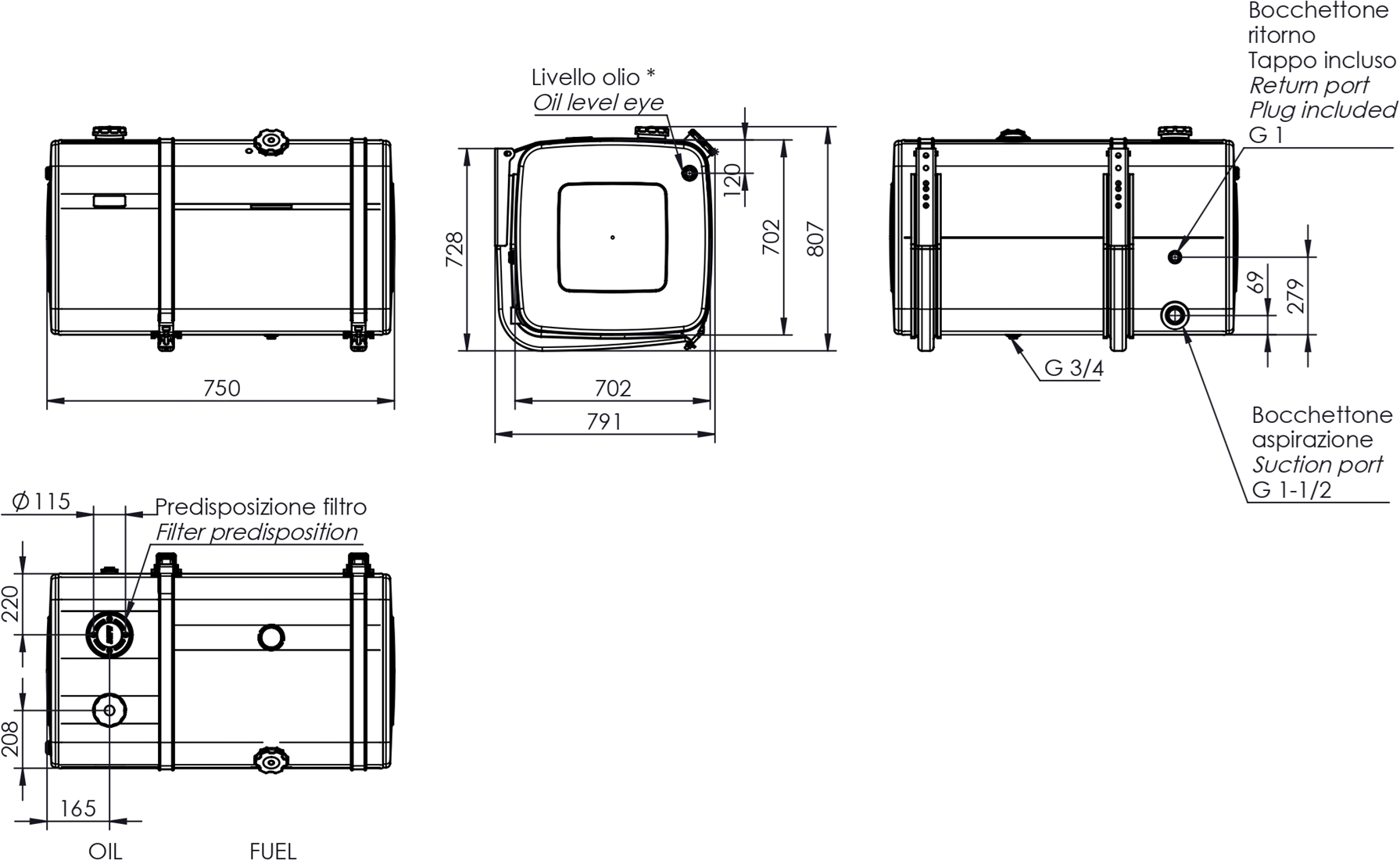

OMFB combined tank for hydraulic and diesel oil with a total capacity of 340 litres (200 litres diesel + 140 litres hydraulic oil).
The hydraulic section is fitted with a 1" 1/2 female thread suction connection with a 1" return connection above it. A level eye 1" is located on the side of the hydraulic section. In addition, there is the possibility of fitting a return filter at the top of the tank.
The fuel section has a (VDO) bayonet connection on top for a diesel level indicator/standpipe and at the bottom there is a 3/4" drain plug which can also be used to connect the tank to an existing tank on the vehicle.
Included are a low model air breather cap with anti-splash function for the hydraulic section and a lockable fuel cap with vent for the diesel section.
Please note that the tank comes without tank supports!
