Product description

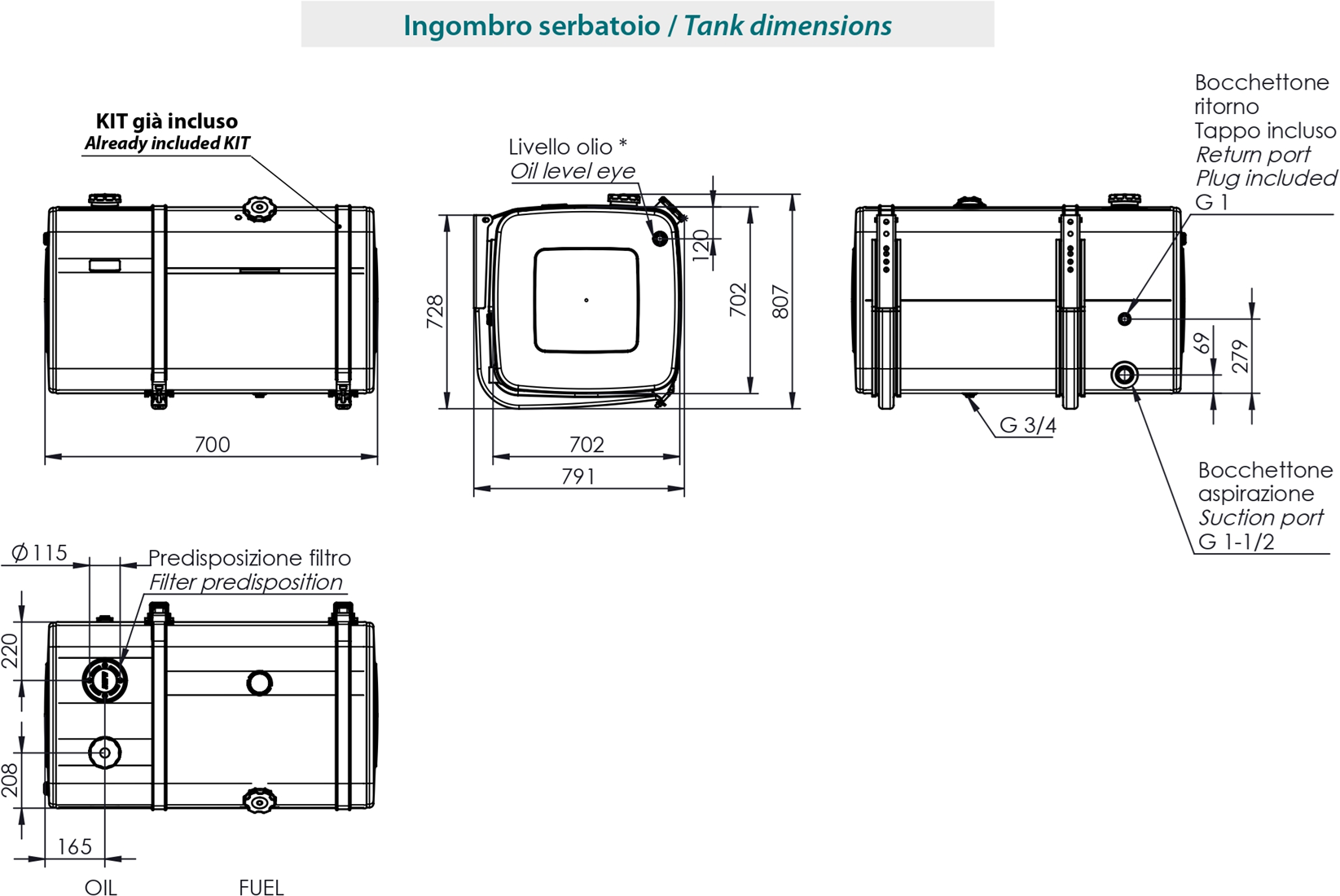

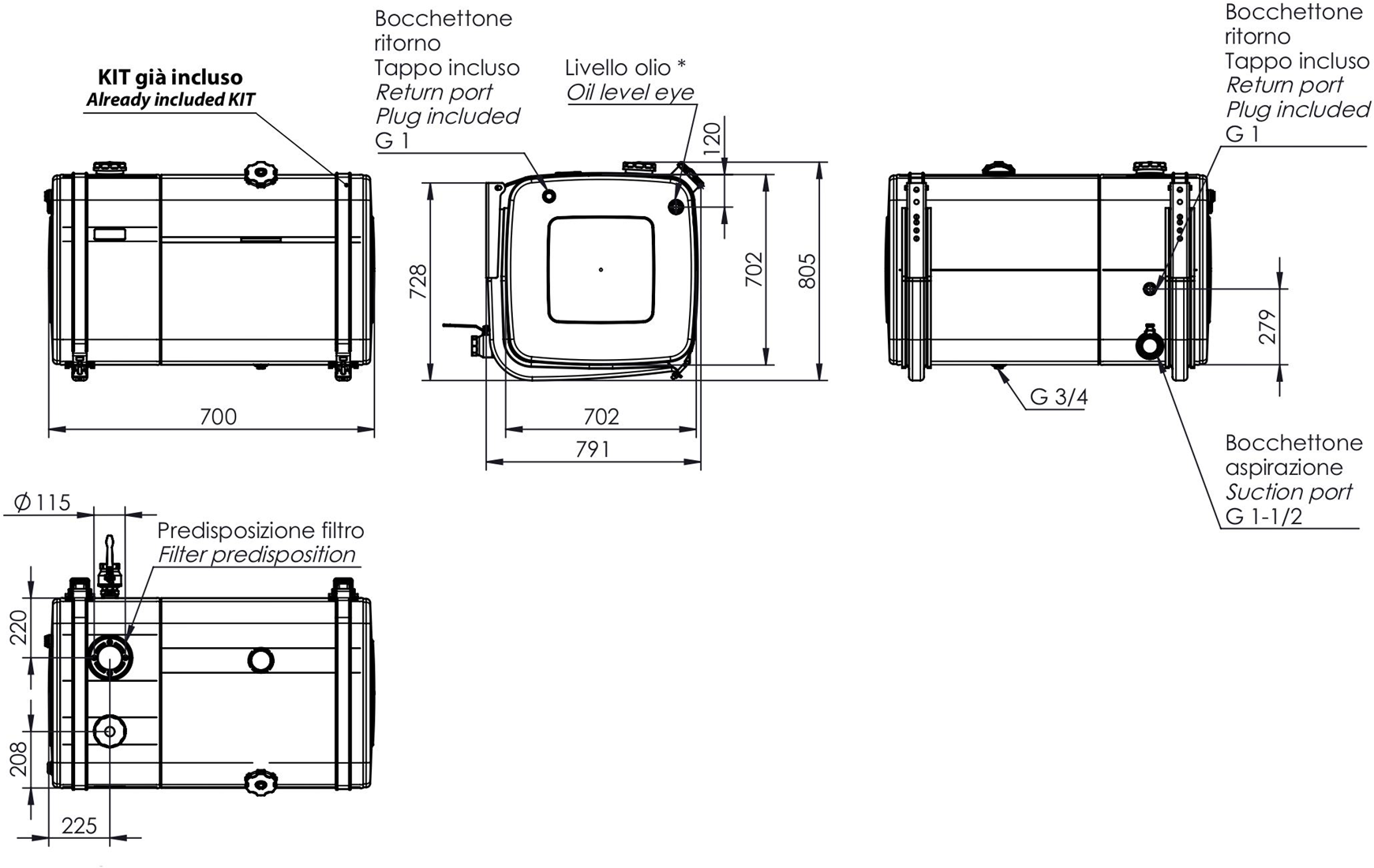

OMFB combined tank for hydraulic and diesel oil with a total capacity of 300 litres (150 litres diesel + 150 litres hydraulic oil).
The hydraulic section is fitted with a 1" 1/2 female thread suction connection with a 1" return connection above it. A level eye 1" is located on the side of the hydraulic section. In addition, there is the possibility of fitting a return filter at the top of the tank.
The fuel section has a (VDO) bayonet connection on top for a diesel level indicator/standpipe and at the bottom there is a 3/4" drain plug which can also be used to connect the tank to an existing tank on the vehicle.
Included are a low model air breather cap with anti-splash function for the hydraulic section, a lockable fuel cap with vent for the diesel section and tank supports for mounting the tank to the chassis. (Optionally, the tank can also be ordered without tank supports).
The above basic technical equipment guarantees great flexibility of use and remarkable ease of installation.
